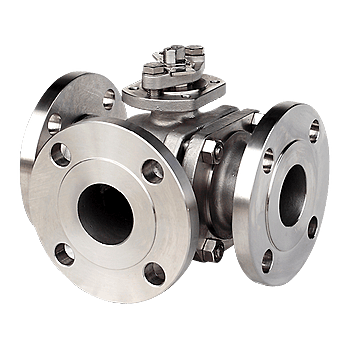

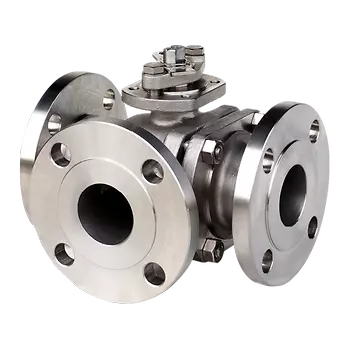

KTM Series MB1 Three Way (4 Seat) Floating Ball Valve
Non-returnable
PHP0.00
The KTM Series MB1 is a three-way, four seat, L and T-port floating ball valve available in both full and reduced bore configurations. The Series MB1 is designed to divert and mix fluids, replacing several two-way valves to optimize space and simplify piping.
Choose Quantity
Product Details
Features
- Positive alignment of body.
- Blow-out proof stem for safety.
- Sphericity tolerance of the ball is unsurpassed.
- Multiple layers of adjustable PTFE chevron packing rings for standard model enable excellent fugitive emission control
- Positive position indication.
- Locking device capable.
- Heavy duty body construction.
- Machined ISO 5211 top mounting flange.
- Live load springs keep constant force on stem-seal packing, ensuring seal integrity and extended valve life.
- Dual shaft bearings for high cycle life operation.
- Higher Cv (Kv) values and less cost for diverting which can be normally done with multiple installation of valves.
- Equipped with 4 seats so that each port can be used as an inlet.
Specifications
- Size range: DN 15 - 200 (NPS ½ - 8) Full bore, DN 125 - 200 (NPS 5 - 8) Reduced bore
- Pressure rating: ASME Class 150, 300 JIS 10K, 20K
- Temperature: -29°C to 150°C (-20°F - 302°F)
- Seats: 4 seats (L and T-port)
https://www.emerson.com/documents/automation/data-sheets-series-nb-mb-three-way-ball-valves-ktm-en-en-5197052.pdf
