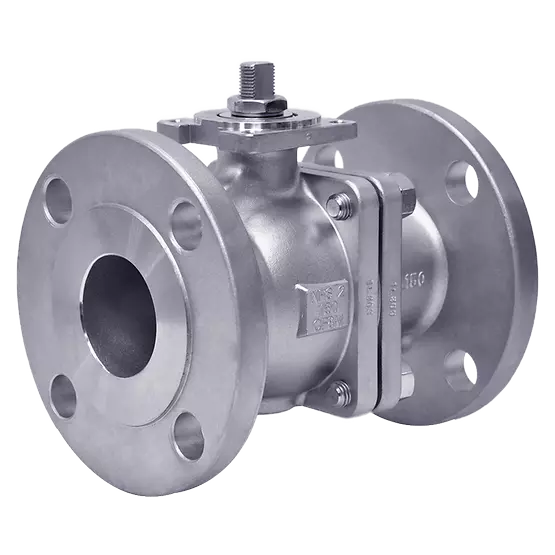

KTM Series EF1 Floating Ball Valve
The KTM Series EF1 split body flanged ball valve is a general purpose ball valve available in a variety of material configurations and features the patented SEALMASTER® shaft seal that provides exceptional fugitive emissions performance.
Features
Two piece split body valve design with flanged connections
Full compliance to ASME B16.34 and EN 12516-1
Firesafe design tested and certified to API 607 7th Edition and ISO 10497:2010
Fugitive emission compliant design features a double stem seal that complies with ISO 15848-1 Class BH C03 requirements (2500 cycles including thermal cycles)
Double shaft seal design complies with TA Luft VDI 2440 requirements
Specifications
Body Design: Two-Piece
Material: Carbon Steel or Stainless Steel
End Connection: Flanged
Pressure Rating: PN 10/16, PN 25/40, ASME 150/300
Valve Size: DN 15 - 300 (NPS ½ - 12)
Valve Size Standard: DN, NPS
Valve Type: Ball Valve, Floating Ball Valve
Data Sheets: Series EF1 Two-Piece Full Bore Ball Valves
