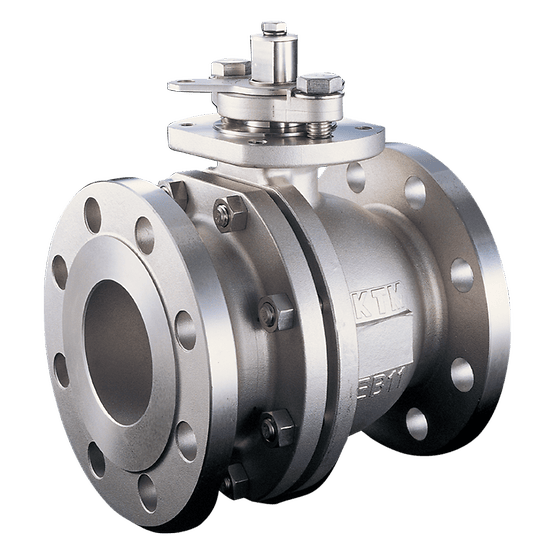

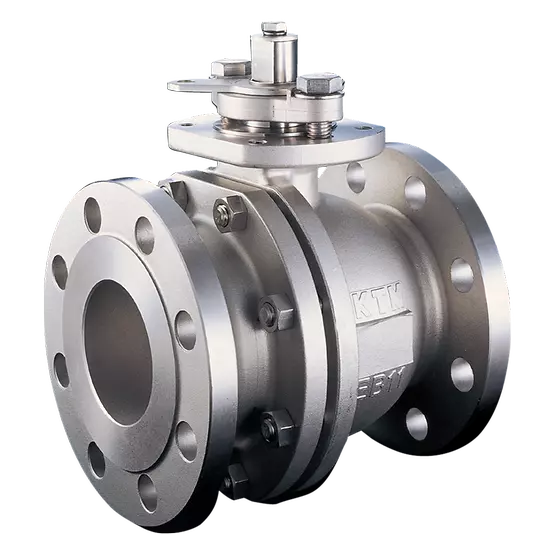

KTM Series EB1 OM-2 Split Body Floating Ball Valve

GENERAL APPLICATIONS

Chemical, petrochemical, pulp and paper, reactive monomers, oil and gas production, steam, hot gases, toxic and lethal, firesafe and flammables

Option

• Stem extension

• For cryogenic, oxygen and vacuum services

• Special painting

• Non-destructive testing options

- X-ray (RT)

- Liquid penetrant (PT)

- Positive Material Identification (PMI)

FEATURES

• Designed to ASME B16.34, API 608 and ISO 17292

• Bidirectional shut-off for soft seat valves

• Superior valve design at a competitive price

• Valve fugitive emissions third party certified to ISO 15848-1 Rate B and API 641

• Machined ISO 5211 actuator mounting pad

• Pure white E-seat (PTFE/PFA copolymer) seal relieves concern over product contamination

• Positive alignment of split body

• Fire test certified to API 607 6th edition and ISO 10497 3rd edition

• PTFE bearing and packing rings reduce torque and wear

• Lower operating torque for ease of operation and reduced actuator cost

• Positive position indication

• Blowout-proof stem

• Material complies to NACE MR0175 / ISO 15156 or MR0103,

• Static electricity grounding device

• Manufactured under ISO 9001 certified quality system

• CE marking PED 2014/68/EU

• Various seat types are available in addition to the standard E-Seat. Each seat option meets

a wide range of performance criteria to suit a variety of applications.

- PTFE/PFA copolymer E-seat as standard*

- PEEK seat (option)

- Gratite® seat (option)

- Metaltite® seat (option)

- NoFill® Pocketless (option)

* Please refer to the Pressure/Temperature rating

TECHNICAL DATA

Model/sizes: Full bore

DN 15 to DN 200 /

NPS 1/2 to NPS 8

Reduced bore

DN 150 to DN 250 /

NPS 6 to NPS 10

Pressure rating: ASME Class 150, 300,

600, 900, 1500

JIS 10K, 20K

(JPI also available)

Temperature: -29°C to 270°C / -20°F to 518°F

(Depending on options -196°C

to 500°C / -320°F to 932°F

is available)

Seat leakage: Zero leakage (E-seat) to

ISO 5208 Rate A and API 598

Data Sheet _KTM Series EB1 OM-2 Split Body Floating Ball Valve
