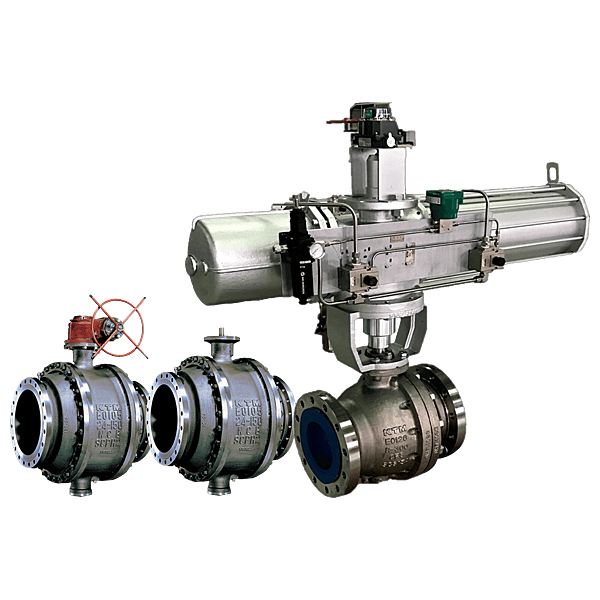

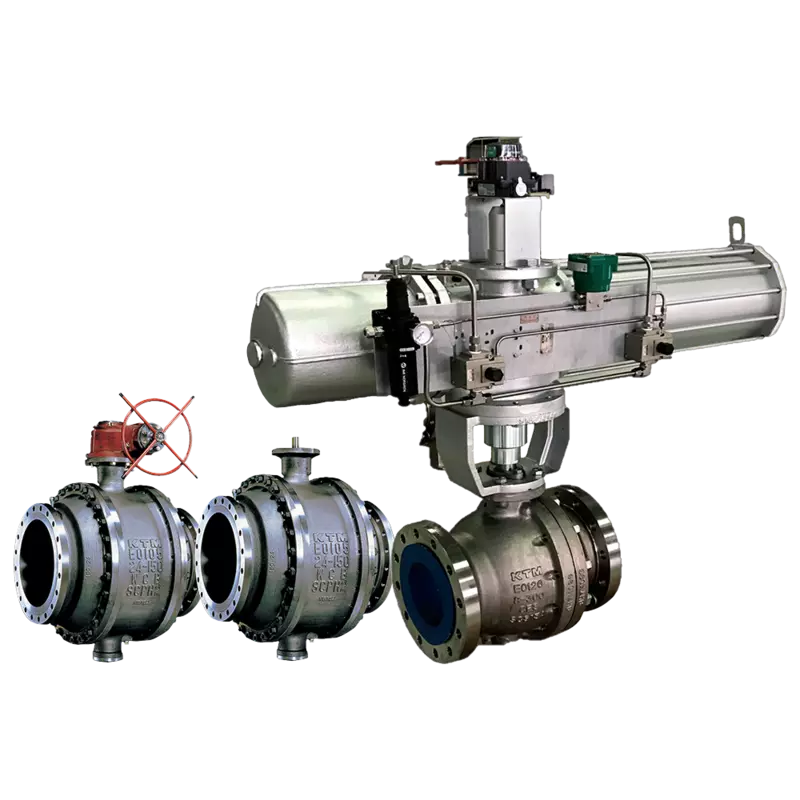

KTM Series E01 Trunnion Mounted Ball Valves
Non-returnable
PHP0.00
KTM Series E01 two and three-piece, bi-directional, cast body block and bleed valves deliver positive shutoff and features a blow-out proof stem, fugitive emission control and firesafe construction.
Choose Quantity
Product Details
Key Features
- Design optimized for higher cycle downstream process applications
- Adjustable stem packing gland eliminates need to disassemble valve or operator for fugitive emissions maintenance (specified by API 608)
- Anti-Static device optional
- ISO 5211 topworks for easy actuation
- Double Block and Bleed with self-relieving center cavity and bidirectional seating
- ASME B16.34 compliant design
- PED compliant
- ASME B16.10 long pattern Face to face, ASME B16.5 Flanges
- Fire Tested API 607/ISO 10497 available with secondary metal seating
- Fugitive Emission ISO 15848-1 Class BH C03 certified stem packing as standard
- Blow out proof stem with position indicator
- Metal backed RPTFE bearing applied in soft seated for lower operating torque
