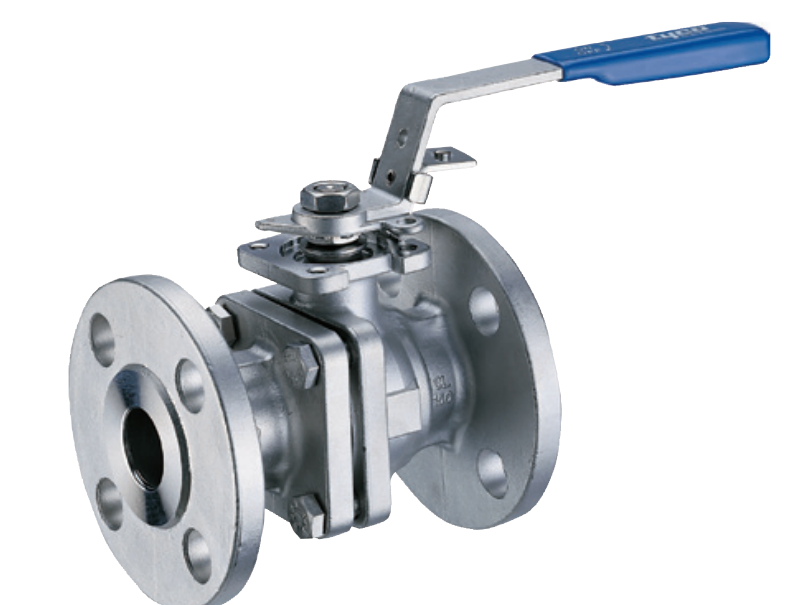

BALL VALVES KTM F190/F190F - SPLIT BODY FLANGED BALL VALVE
KTM F190/F190F - SPLIT BODY FLANGED BALL VALVE
High performance two-piece ball valve for demanding process and utility applications
Product Details
GENERAL APPLICATIONS
The range includes valves ideal for
petrochemical, chemical and general industrial
applications, as well as service applications
including water, oil, gas. The F190F model
offers a design suitable for more hazardous
services such as fuel and inflammable
substances.
FEATURES
• Two-piece, split-body ball valve with flanged ends
• Carbon steel or stainless steel bodies
• Size range DN 15 (NPS ½) to DN 300 (NPS 12)
- Full bore
• Valve pressure rating:
-ANSI Class 150/300
-DIN PN 10/16/25/40
-JIS 10K/20K
• Various seat material options
• Investment cast body DN 15 to DN 100
• Sand cast body DN 125 to DN 300
• Model F190F fire tested to API 607
• Patented ‘SEALMASTER®’ shaft arrangement
• F190 double shaft seal design has been certified to TA-Luft VDI 2440 requirements
• Blow out proof shaft
• ISO 5211 mounting plate
• Anti-static design according to EN 1983/ ISO 17292
• Tightness to ISO 5208 rate A and EN 12266-1 rate A
• Locking device
• Patented ‘POSILOCK™’ handle for DN 15
(NPS ½) to DN 50 (NPS 2) full bore
