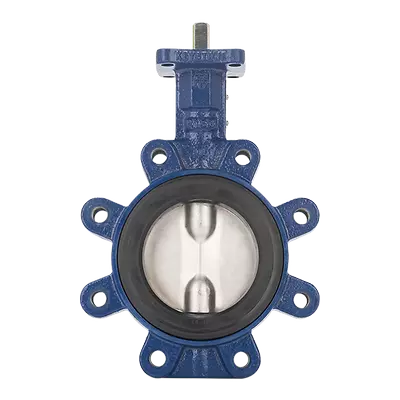

Keystone Series GR Butterfly Valve

GENERAL APPLICATION

Water, air, dry bulk conveying etc. These valves are for any service where a drop-tight shut-off with maximum flow area is required.

FEATURES

• Wafer and lugged body design with face-to-face dimension, according to EN 558 Series 20 and API 609.

• Designed according to EN 593 and API 609.

• The seat is field replaceable and fully isolates the body and shaft from the flow.

• Primary shaft sealing exceeds the pressure rating of the valve and prevents leakage through shaft area to atmosphere.

• A secondary shaft sealing provides back-up safety.

• A molded-in O-ring in the seat for flange sealing eliminates the need for gaskets.

• Shaft seals prevent moisture penetrating into the shaft area.

• The two piece shaft allows for a thin disc and provides minimal obstruction to flow (up to DN 300/ NPS 12).

• Rounded polished disc edge gives full concentric sealing, lower torques, longer seat life and drop-tight shut-off.

• Body locating holes allow ease of installation and centering between the flanges.

• Extended body neck allows for pipe insulation.

• Top and bottom shaft bearings for optimized support and minimum friction and decreased torque.

• Top bushing absorbs actuator side thrust loads.

• All valves comply to Pressure Equipment Directive (2014/68/EU) Module B + D, CE Marking.

• Available approvals: NSF/ANSI 61, ACS, KIWA, WRAS, DVGW-G, ABS, CU-TR, DNV

TECHNICAL DATA

Sizes: DN 50 - 900 (NPS 2 - 36)

Pressure:

16 bar DN 50 - 300 (230 psi NPS 2 - 12)

10 bar DN 350 - 900 (150 psi NPS 14 - 36)

Reinforced seat:

16 bar DN 350 - 600 (230 psi NPS 14 - 24)

End of line:

10 bar DN 50 - 300 (150 psi NPS 2 - 12)

6 bar DN 350 - 900 (90 psi NPS 14 - 36)

Reinforced seat: 10 bar DN 350 - 600 (150 psi NPS 14 - 24)

Vacuum service: 0.4 bar (5.8 psia)

Temperature: -40°C to +160°C (-40 °F to +320°F)

Flange accommodation:

PN 6/10/16 ASME 125/150 JIS 10K BS Table E AS4087 PN 16 AS2129 Table E
