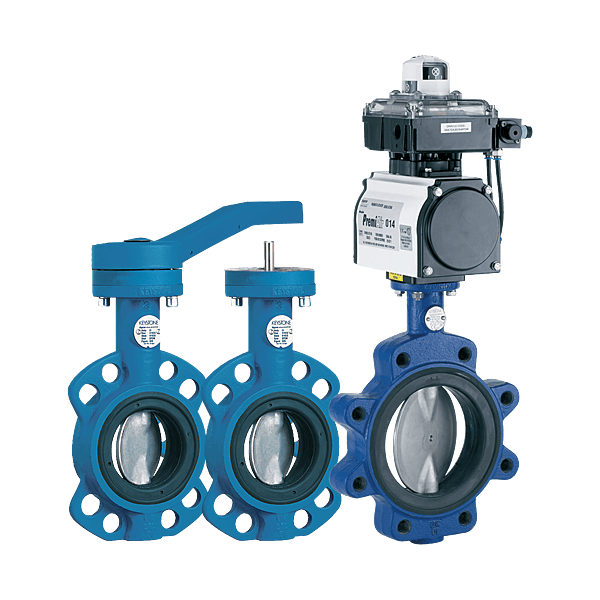

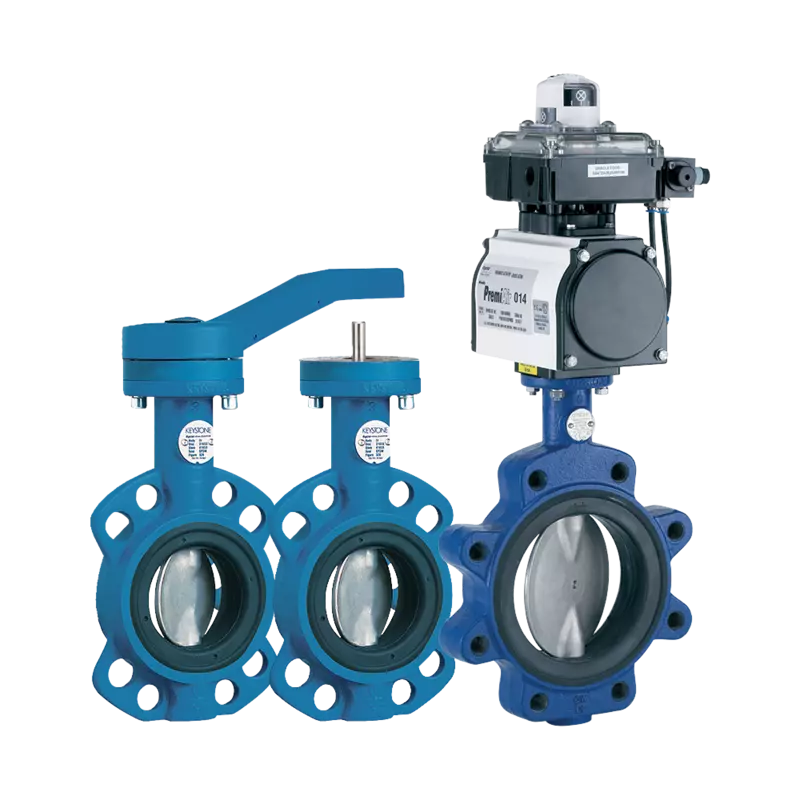

Keystone Figure 320/322 Butterfly Valves

Name: Keystone Figure 320/322 Butterfly Valves
Brand: Keystone (Emerson)
Availability: InStock

Non-returnable

PHP0.00

Keystone Figure 320/322 economical resilient seated butterfly valves are designed to ISO standards for applications requiring shut-off control in both wafer (Figure 320) and lugged (Figure 322) style.

Choose Quantity

+ Add to Cart

Product Details

Key Features

Bubble-tight shut-off at full rating in both directions.
One piece, specially profiled, wafer thin disc stem.
Extended body neck allows free access to actuator where pipe insulation has been fitted.
The seat and disc are the only two parts in contact with the medium.
Face to face dimensions according ISO 3202 Part 3, K1 (ISO 5752 series 20) and DIN EN 558-1, series 20.
The F320 wafer version has four flange locating holes for end of line service under certain conditions.
Standard actuation:
- Handle (F414) on DN 50-200 valves.
- Gear operators (F455) on DN 250-300.
The F322 lugged version is suitable for bi-directional end of line service.
Suitable for pneumatic, electric and hydraulic actuation.

https://www.emerson.com/is/content/emerson/en/final-control/isolation-valves/ball-valves/documents/figure-320-322/ISV-TDS-Figure-320-wafer-Figure-322-lugged-Butterfly-Valves-PHOBE-0500-EN.pdf

Keystone Figure 320/322 Butterfly Valves

Key Features
