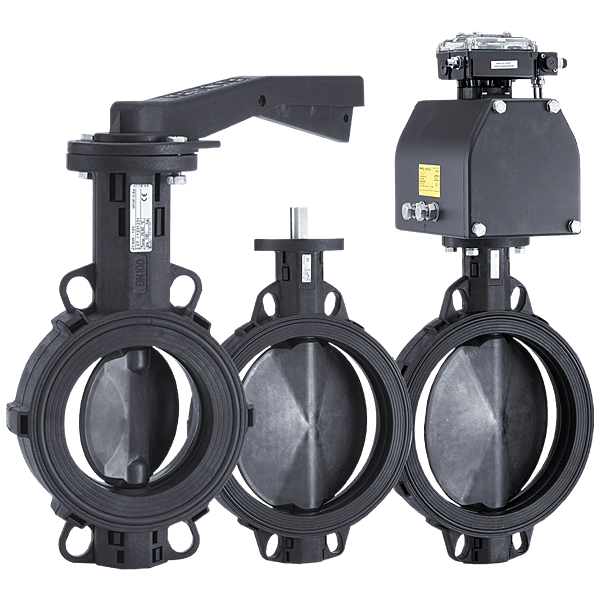

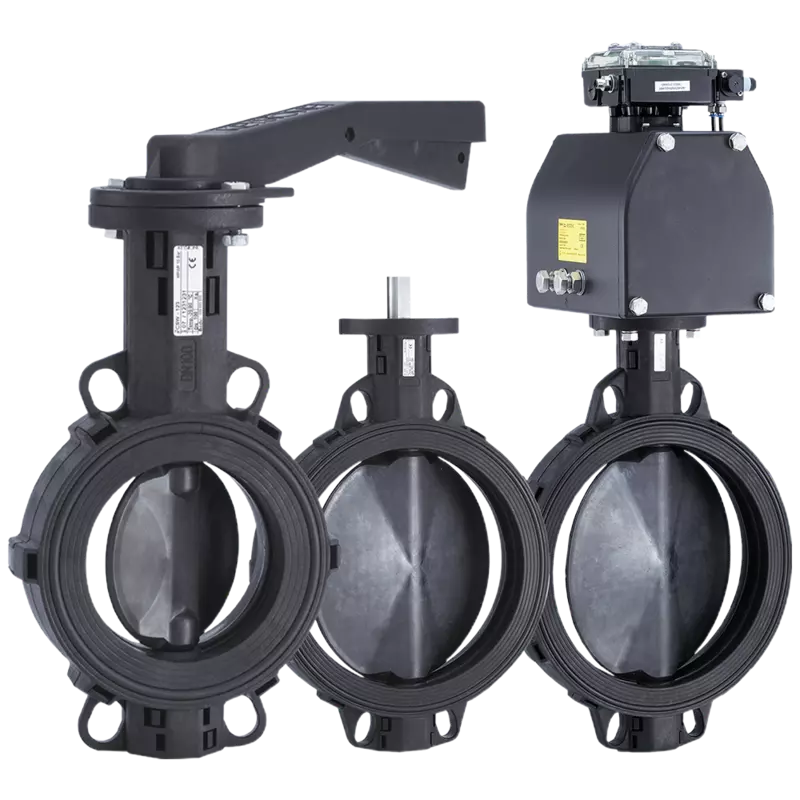

Keystone CompoSeal Resilient Seated Butterfly Valve

Name: Keystone CompoSeal Resilient Seated Butterfly Valve
Brand: Keystone (Emerson)
Availability: InStock

Non-returnable

PHP0.00

Tags:

Composite body and disc provide chemical resistance while keeping installation light, simple and corrosion proof.

Keystone CompoSeal Resilient Seated Butterfly Valve Composite body and disc provide chemical resistance while keeping installation light, simple and corrosion proof. Keystone CompoSeal resilient seated butterfly valves feature a valve body and disc in highly engineered composite material providing excellent internal and external chemical resistance whilst being lightweight and simple to install.

Choose Quantity

+ Add to Cart

Product Details

Key Features

Light weight construction results in lower cost and simplified installation.
No extra pipe support needed when installed in plastic or GRP piping.
Disc in high engineered composite material provides excellent corrosion resistance.
All fasteners in stainless steel 316 as standard.
Bubble tight shut-off in both directions, in accordance with EN 12266-1 leakrate A.
Pressure range up to PN 16 at elevated temperature.
Valve can be used in high line velocity applications up to 12 m/sec.
Spindle and primary valve seals are not influenced by the flange bolting force or pipe flange type.
High Kv (Cv) value.
No need for flange gaskets.
Primary stem sealing exceeds the pressure rating of the valve and prevents leakage through the shaft area to atmosphere.

https://www.emerson.com/is/content/emerson/en/final-control/flow-controls/documents/final_fcfl-20203-en-keystone-composeal-flyer-en.pdf
