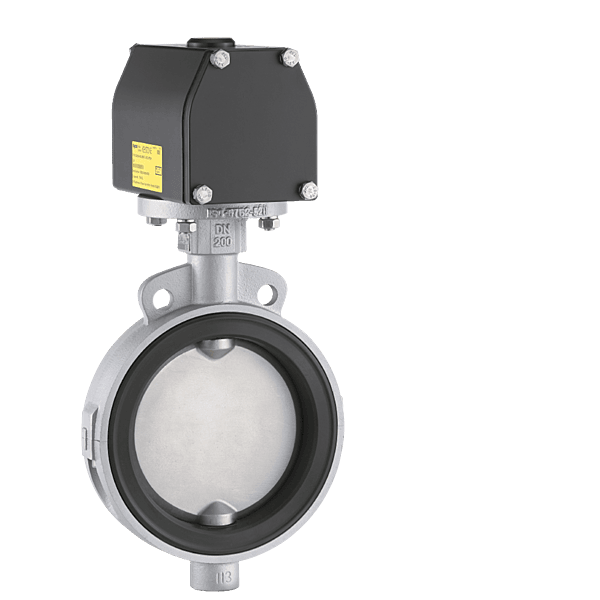

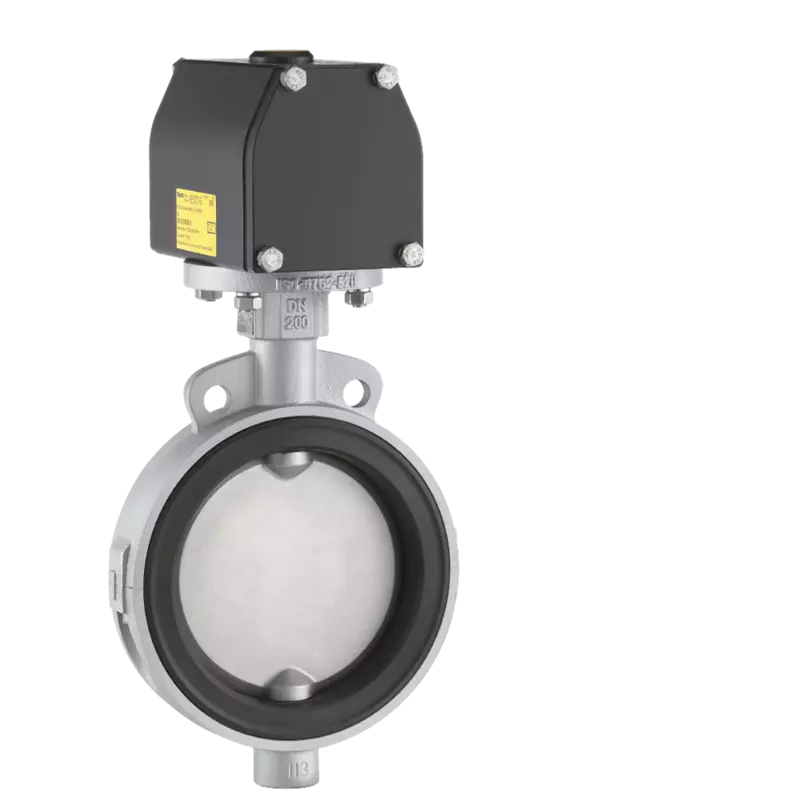

Keystone BrewSeal Butterfly Valves
Non-returnable
PHP0.00
Tags:
Resilient seated Butterfly valves DN 40 - 800 wafer and lugged versions, optimized for the food and beverage industry.
Designed specifically for the food & beverage industry with material options to suit brewing, pasteurization and filling applications.
Choose Quantity
Product Details
Key Features
- Top bushing absorbs actuator side thrust loads.
- Dirtscraper prevents moisture penetrating into the shaft area.
- Actuator flange acc. ISO 5211.
- High solid, glossy, silicone free, paint system ensuring excellent corrosion resistance.
- Body locating holes ease installation and centering between the flanges.
- Sealed body splits prevent moistures from penetrating behind the seat (up to DN 300).
- Rounded polished disc edge gives full concentric sealing, lower torques, longer seat life and bubble-tight shut-off.
- The seat is field replaceable and fully isolates the body and stem from the flow.
- Primary stem sealing exceeds the pressure rating of the valve and prevents leakage through shaft area to atmosphere.
- A secondary shaft sealing provides back-up safety.
- A molded-in O-ring in the seat for flange sealing eliminates the need for gaskets.
- The thin disc provides the very minimum obstruction to flow (up to DN 300).
https://www.emerson.com/is/content/emerson/en/final-control/isolation-valves/ball-valves/documents/brewseal/ISV-TDS-BrewSeal-butterfly-valves-EBPJV-0774-EN.pdf
