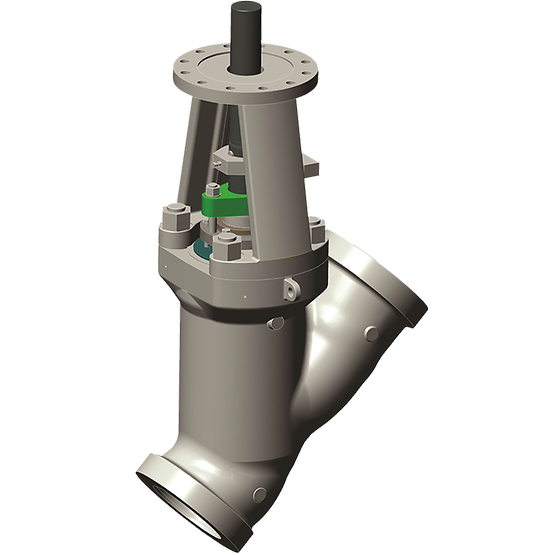

Fasani Style B High Pressure Globe Valve
Non-returnable
PHP0.00
A wide range of globe valves specifically designed for high pressure and high temperature applications, where low pressure loss is required.
Choose Quantity
Product Details
Features
- A range of compact pressure seal globe valves designed according to ASME B16.34 with wall thickness according to API 600.
- All range is offered in all the material stated in the ASTM specifications (NACE compliance included), and designed to always guarantee the maximum safety and flow efficiency.
- Face to face dimensions as per ASME B16.10
- Available in Y and T pattern design (both also in Stop-Check configuration)
- Seat is welded-in
- Position indicator is offered as standard
- Stellite® gr.6 overlay on seat and disc; Stellite gr.21 overlay on bonnet.
- Standard ISO top mounting for easy assembly of any type of actuator or bevel gear
- Available options: parabolic disc, low emission packing, equalizing and overpressure pipe, limit switch in open or close position.
- Valves are offered as standard with manual operators (Hand wheel or bevel gear depending on size). Actuated options such as electric, pneumatic or hydraulic are available.
Specifications
- Certifications: India Boiler Registration, NACE, PED, ASME B31.1
- End Connection: Butt Weld, Flanged
- Application: Steam Headers, Steam turbine, Pumps, Valves & Manifolds, HRSG, High Temp, Cogeneration, Boilers, Balance of Plant, Boiler
- Body Design: Long Pattern
- Material: Alloy, Carbon Steel, Duplex, Metal, Stainless Steel, Steel
- Operating Temperature: High Temperature
- Pressure Class: ASME
- Process Connection Type: BWE, 900RF, 2500RF, 1500RF
- Seat/Seal Type: Metal-to-Metal
- Shutoff Class: Class V (FCI 70-2)
- Standards: ASME B16.34
- Style: Globe Valves
- Valve Size: NPS 6 / DN 150, NPS 4 / DN 100, NPS 3 / DN 80, NPS 2-1/2 / DN 65, NPS 2 / DN 50, 6 inch (DN150) and Larger, 5 inch
- Valve Size Standard: NPS
- Valve Type: Globe
https://www.emerson.com/documents/automation/data-sheets-fasani-pressure-seal-cast-globe-valves-style-b-fasani-en-en-5194162.pdf
