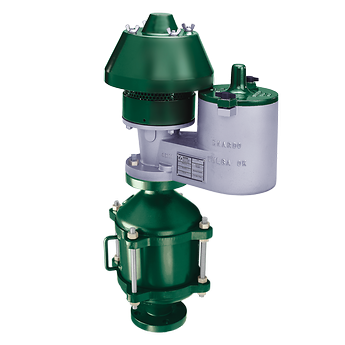

Enardo Series 950 Vent-to-Atmosphere Pressure/Vacuum Relief Valve
Non-returnable
PHP0.00
The Enardo Series 950 is part of our line of high-performance pressure vacuum relief valves and is designed with features that exceed the performance of standard valves on the market, particularly in very cold ambient conditions and applications involving sticky materials. This valve provides pressure and vacuum relief for normal venting requirements while maintaining a safe internal working pressure to prevent the routine expulsion of waste gas to the atmosphere.
Choose Quantity
Product Details
Features
- PPS Internal Parts for Superior Corrosion Protection
- Saber Guide System for Precise Valve Stroke
- Exceeds Leakage Standard of 1 SCFH @ 90% Set Point
- Fully Replaceable Pallet and Seat Assemblies
- Available with ANSI, DIN and JIS Flanges
- EN 13463-1, EN 13463-5 Certified
Specifications- Sizes: 2 through 12
- Housing Materials: Aluminum | Ductile Iron | Stainless Steel | Carbon Steel
- Leakage Rate: Exceed Leakage Standard of 1 SCFH @ 90% Set Point
- Weight Materials: Zinc Plated CS | Stainless Steel | Lead | Resin Coated Stainless Steel
- Seat and Pallet Materials: PPS | 316 Stainless Steel
- Seal and Gasket Materials: Buna-N | FEP Teflon | Viton
- Pressure Settings: 0.5 to 32 oz/sq in
- Vacuum Settings: 0.5 to 32 oz/sq in
https://www.emerson.com/documents/automation/product-brochure-ethylene-process-map-poster-24x36in-fisher-en-en-7179406.pdf
- PPS Internal Parts for Superior Corrosion Protection
- Saber Guide System for Precise Valve Stroke
- Exceeds Leakage Standard of 1 SCFH @ 90% Set Point
- Fully Replaceable Pallet and Seat Assemblies
- Available with ANSI, DIN and JIS Flanges
- EN 13463-1, EN 13463-5 Certified
Specifications
- Sizes: 2 through 12
- Housing Materials: Aluminum | Ductile Iron | Stainless Steel | Carbon Steel
- Leakage Rate: Exceed Leakage Standard of 1 SCFH @ 90% Set Point
- Weight Materials: Zinc Plated CS | Stainless Steel | Lead | Resin Coated Stainless Steel
- Seat and Pallet Materials: PPS | 316 Stainless Steel
- Seal and Gasket Materials: Buna-N | FEP Teflon | Viton
- Pressure Settings: 0.5 to 32 oz/sq in
- Vacuum Settings: 0.5 to 32 oz/sq in
