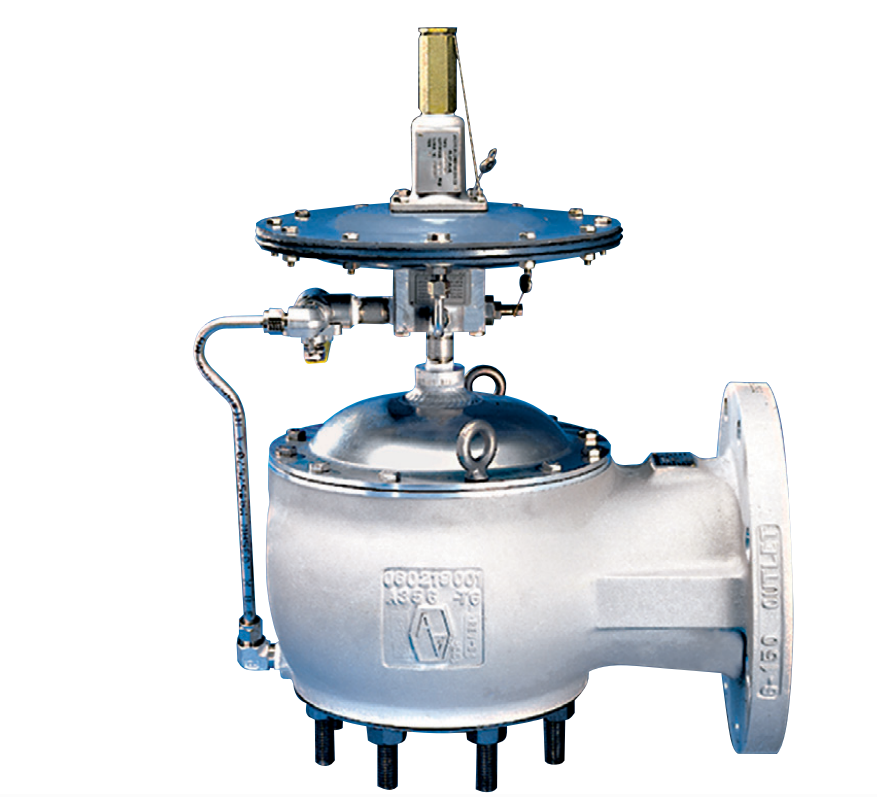

Anderson Greenwood Series 9300 Pilot Operated Safety relief Valve
The Series 9300 employs the highly successful pressurized PTFE film seat, as well as protected FEP diaphragms. The design allows these valves to be used in the pilot operated pressure relief mode and simultaneously provide vacuum relief, either via weight loads of the internals, or with a specific pilot control of the vacuum opening. The Series 9300 was designed with a special studded inlet connection to reduce the inlet profile, and coupled with larger orifice areas, these valves provide flow capacities as much as 45% greater than the Series 90 valves. The Series 9300 is a full body valve to pipe away the discharge if required.
Installation
For valves supplied with eyebolts, follow the instructions in Anderson Greenwood Pilot operated safety relief valves 05-9040-352 (VCOSI-06034 Operating and Safety Instructions) pertaining to the safe use and storage of eyebolts. Refer to Anderson Greenwood Pilot operated safety relief valves 05-9040-372 (VCIOM-03099 Winterization Guidelines) and 05-9040-352 for more information regarding Winterization requirements.
Service applicability
Refrigerated or cryogenic storage tanks (accurate low-pressure protection), natural gas transmission and distribution, blanketed vessels in the petrochemical, food and electronics industries, ammonia, air blowers in the waste water treatment plants and marine (LNG and LPG).
Code applicability
The Series 9300 are designed to meet the requirements of ASME UV Code Stamp, NB certified capacity 15 psig and above, and API 2000.
