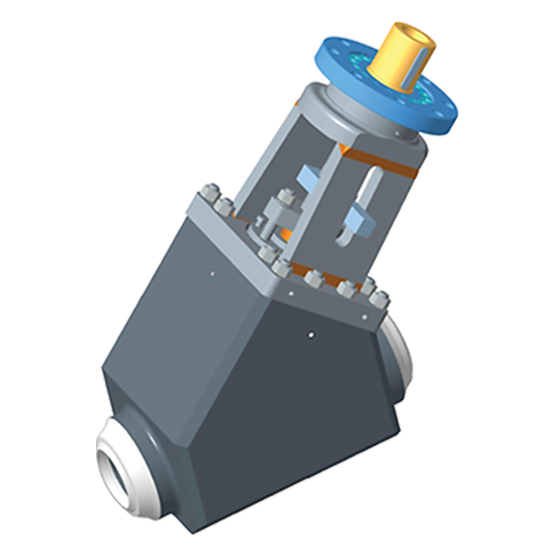

Sempell Raisteam High Pressure Globe Valve
Non-returnable
PHP0.00
Forged high pressure Y pattern, T pattern and angle pattern globe valves
Choose Quantity
Product Details
Features
- Forged body materials of highest quality, all in compliance with ASME and DIN standards.
- Globe valves designed as per ASME B16.34, API 600, ISO, DIN, TRD, VGB, TRB, PED.
- CE mark 100% Compliance with European Pressure Equipment Directive n°2014/68/EU.
- “T”, “Y” and angle patterns available.
- Packing with pure graphite pressed rings, with a minimum density of 1.8 g/cm3 each, to improve its sealing effectiveness and, at the same time, to decrease the risk for fugitive emissions.
- Mechanical position indicator supplied as standard.
- Yoke equipped with connecting flange on top to facilitate gear operator assembly.
- Special constructions and materials available.
- Valves are offered as standard with manual operators (Hand wheel or bevel gear depending on size). Actuated options such as electric, pneumatic or hydraulic are available.
Specifications
- Certifications: ASME B31.1, India Boiler Registration, PED, CE
- End Connection: Butt Weld
- Application: Cogeneration, High Temp, HRSG, Steam Headers, Steam turbine, Boilers, Boiler, Balance of Plant, Biomass Boiler and Power Boiler, Pumps, Valves & Manifolds, General Service
- Body Design: Long Pattern, Short Pattern
- Material: Stainless Steel, Carbon Steel, Alloy, Metal, Steel
- Operating Temperature: High Temperature
- Pressure Class: ASME, PN
- Process Connection Type: BWE
- Seat/Seal Type: Metal-to-Metal
- Shutoff Class: Class V (FCI 70-2)
- Standards: ASME B16.34
- Style: Globe Valves
- Valve Size: 5 inch, 6 inch (DN150) and Larger, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100
- Valve Size Standard: DN, NPS
- Valve Type: Engineered Product, Globe
