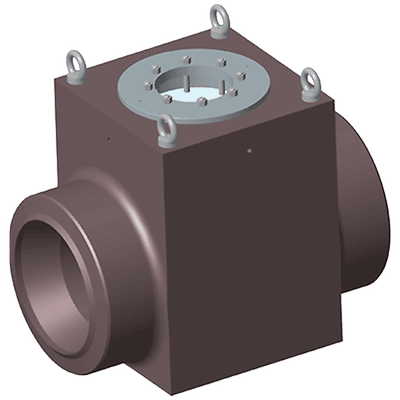

Sempell Raisteam High Pressure Check Valve

Features

• High quality forged materials to guarantee pressure envelope integrity, to conform with ASME and DIN standards.
• Designed to comply with ASME B16.34, API 600, ISO, DIN, TRD, VGB, TRB, PED.
• CE mark 100% Compliance with European Pressure Equipment Directive 2014/68/EU.
• Advanced pressure seal design and pure graphite gasket rings to ensure high tightness and to comply with the Health, Safety and Environment requirements for fugitive emissions control.
• Supplied as swing check and tilting disc configurations.
• Slam-free operation offered by tilting disc configuration.
• Special constructions/materials, screw down check valve configuration - all available upon request.

Specifications

• Certifications: CE, ASME B31.1, PED
• End Connection: Butt Weld
• Application: Biomass Boiler and Power Boiler, Boiler, Boilers, High Temp, HRSG, Steam Headers, Steam turbine, Waste to Energy
• Body Design: Long Pattern, Top Entry
• Material: Steel, Carbon Steel, Stainless Steel, Alloy, Metal
• Operating Temperature: High Temperature
• Pressure Class: ASME, PN
• Process Connection Type: BWE
• Seat/Seal Type: Swing, Metal-to-Metal
• Shutoff Class: Class V (FCI 70-2)
• Standards: ASME B16.34
• Valve Size: 5 inch, 6 inch (DN150) and Larger, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3 / DN 80, NPS 4 / DN 100, NPS 6 / DN 150
• Valve Size Standard: NPS, DN
• Valve Type: Engineered Product
• Media: Water, Steam, Hot Water

Data Sheets: Raisteam Pressure Seal Forged Check Valves, Sempell-EN
