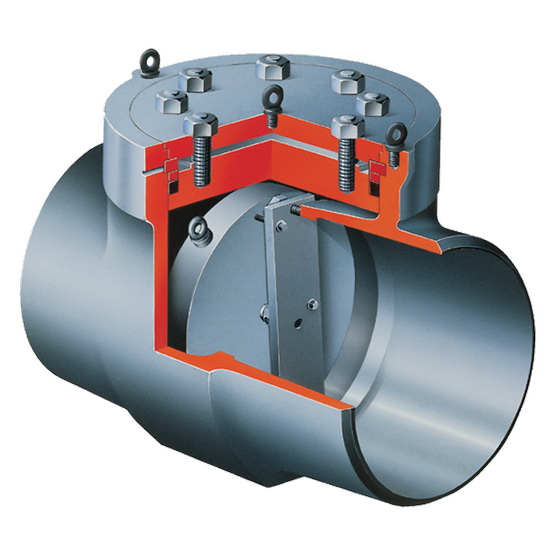

Sempell Dewrance Reheater Isolating Device
Non-returnable
PHP0.00
These valves provide the facility for hydrostatic test, inspection access, chemical clean and steam blow procedures, yet provide a low pressure loss when in normal service.
Choose Quantity
Product Details
Features
- Minimal parts with full bore seat for optimum performance and low pressure drop
- Simple isolating closure with one jacking stud
- Improved performance
- Low cost isolating device
- Simple method of isolation with full bore, low pressure drop
- Ability to enter pipe system through cover for steam purge (chemical clean)
- Pressure seal bonnet design gives maximum reliability with minimum maintenance
- No replacement parts required (other than pressure seal)
Specifications
- Certifications: ASME B31.1, PED, India Boiler Registration, CE
- End Connection: Butt Weld
- Material: Alloy, Carbon Steel, Metal, Steel
- Pressure Class: ASME
- Shutoff Class: Class V (FCI 70-2)
- Valve Size: 6 inch (DN150) and Larger
- Valve Size Standard: NPS, DN
- Valve Type: Engineered Product, Gate
