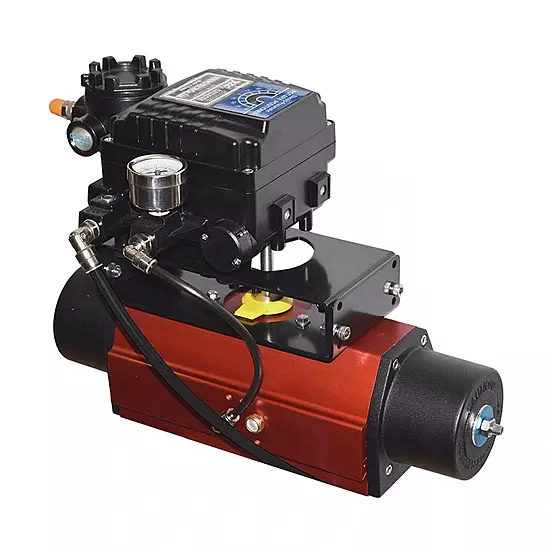

RC200 | Compact Scotch Yoke Actuators for Quarter-Turn Valves
Non-returnable
PHP0.00
Tags:
RC200 are compact pneumatic scotch yoke actuators for valves with high start or end torque requirements. Available in double-acting and spring-return with a variety of configurations and an extensive range of options and accessories. Explosionproof anodised aluminium housing and efficient design deliver high reliability and low air consumption.
Choose Quantity
Product Details
Features
• Compact design in double-acting or spring-return
• Contained spring module for safety and convenience
• Valve mounting dimensions per ISO 5211/DIN 3337
• Pre-tensioned springs for safety
• Connections according to international standards
• Scotch yoke design provides high torque in the end positions
• Three-year warranty
• High efficiency, low air consumption
• Housing in anodised aluminium
• Standard temperature range -20 to +75 °C (-4 to +167 °F)
• Certified in accordance with PED 2014/68/EU
• Certified to ATEX 2014/34/EU
• Certified suitable for use at SIL3 as a single device (IEC 61508)
Options:
• M1 handwheel manual override
• Adjustable travel stops in both directions
• High temperature range 0 to +150 °C (+32 to +300 °F)
• Low temperature range -40 to +60 °C (-40 to +140 °F)
• Arctic temperature range -47 to +60 °C (-52 to +140 °F)
• Water or oil hydraulics
• Over-travel
