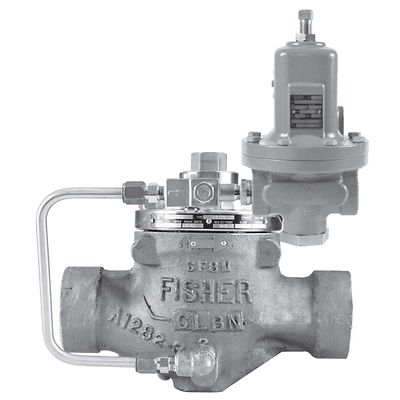

Fisher Type LR125 | Pressure Reducing
PHP100.00
Tags:
Use: Liquids
Outlet Pressure Range: 15 to 150 psig / 1 to 10.3 bar
Maximum Inlet Pressure: 300 psig / 20.7 bar
Maximum Capacity: 2052 gpm / 7769 l/min
Operation Method: Pilot-Operated
Body Material: WCC Steel, CF8M orCF3M Stainless Steel
Maximum Temp Capacity: 250°F / 121°C*
Bulletin No. 71.2:LR125
Choose Quantity
Product Details
The Type LR125 pilot-operated, pressure reducing regulator is designed for liquid industrial/commercial applications.
The Type LR125 provides smooth operation, tight shutoff and long life, even in dirty service.
Its internally actuated metal plug eliminates disadvantages associated with boot-style regulators and the specially engineered flow path deflects debris, protecting the seat from damage and erosion.
The Type LR125 is used in conjunction with a Type 95H pilot and Type 112 restrictor.
An internal inlet strainer prevents large particles from entering the main valve, limiting damage to internal parts
