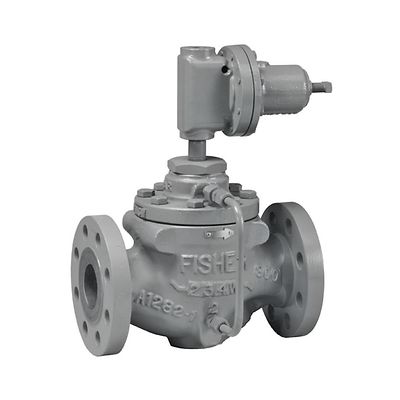

Fisher™ Type 63EG-98HM | Relief/Backpressure
PHP0.00
The Type 63EG-98HM is a compact, fast response, high accuracy relief valve/backpressure which is suitable for gas or liquid service.
The valve's design makes it ideal for pump recirculation especially in skid packages where space is limited.
Available constructions include units suitable for sea water applications.
Choose Quantity
Product Details
Body Size: NPS 2, 3, 4, 6 and 8 × 6 /DN 50, 80, 100, 150 and 200 x 150
Relief Pressure Range: 15 to 375 psig / 1.0 to 25.9 bar
Maximum Inlet Pressure: 450 psig / 31.0 bar
Maximum Capacity: 4900 gpm / 18,547 l/min
Operation Method: Pilot-Operated
Body Material: Steel, Stainless Steel, Hastelloy® C,Monel® and Alloy 20
Bulletin No. 71.4: 63EG-98HM
