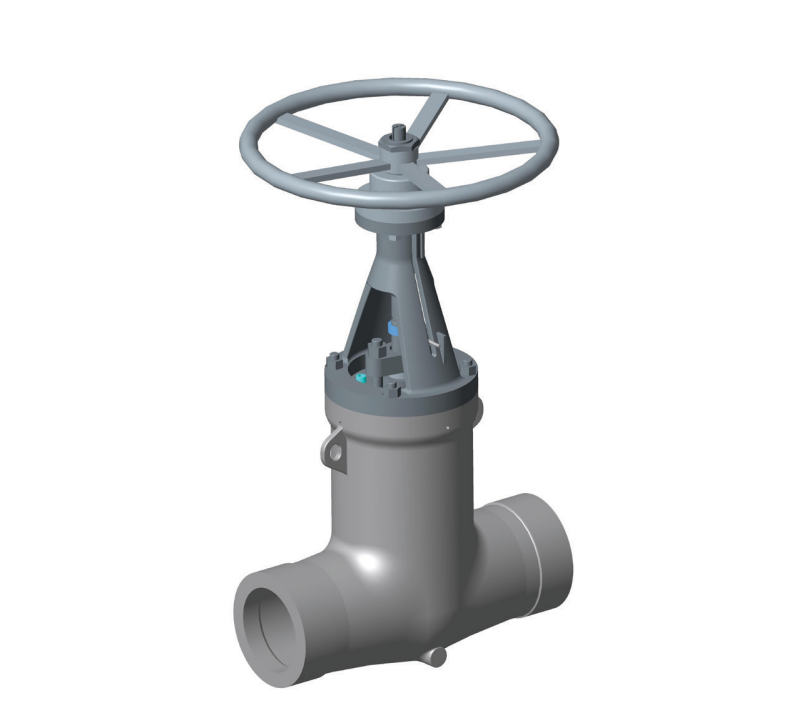

Fasani Pressure Seal Gate Valve - Style A
Non-returnable
PHP0.00
A series of robust gate valves specifically designed for applications in the power industry
Choose Quantity
Product Details
GENERAL APPLICATION
Our pressure seal - Style A gate valves are recommended for several applications in the
power industry, in particular in feed water lines, steam lines, and in services which involve high
temperatures media.
FEATURES
• A range of compact pressure seal gate valves designed according to ASME B16.34.
• All range is offered in four standard cast materials: WCB (generally used on feed
water lines), WC6 and WC9 (both used on steam lines), C12A (proposed for high temp.
applications).
• End to end dimensions as per ASME B16.10 short pattern.
• Available in wedge gate and parallel slide configurations.
• Seats are welded in.
• Position indicator is offered as standard.
• Stellite® gr. 6 overlay on seat and wedge or disc; Stellite® gr. 21 overlay on backseat.
• Pressure seal gasket has trapezoidal shape for a low load on bolting, and is supplied in
graphite with integral stainless steel antiextrusion protection.
• Standard ISO top mounting for easy assembly of any type of actuator or bevel gear.
• Available options: wedge vent hole or overpressure pipe, by-pass, limit switch in
open or closed position.
• Valves are offered as standard with manual operators (Hand wheel or bevel gear
depending on size). Actuated options such as electric, pneumatic or hydraulic are available.
