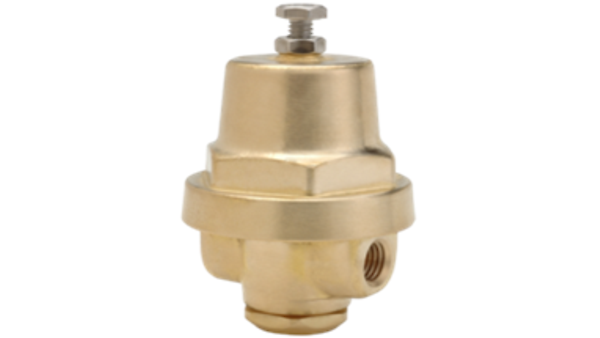

Cash Valve PBE Series Pressure Regulator
Non-returnable
PHP0.00
The type PBE-5 regulator is a fully automatic pressure building/economizer valve designed
for cryogenic liquid systems. It is equipped with a non-adjustable/fixed set point economizer.
The valve is also equipped with bullnose tube connections that incorporates a check valve
to prevent backflow into the economizer. An indicating adjustment screw provides an easy
field adjustment reference.
Choose Quantity
Product Details
Features:
Combines the pressure building regulator and economizer functions into one compact package.
Brass/Bronze body and available SST for PBE-2.
Check valves available for PBE-2 and PBE-5.
Tube end connections available for PBE-5.
Bronze diaphragms.
Cleaned and packaged per CGA-G4.1 for oxygen service.
Specifications
Sizes:
PBE-1A: 1/4"
PBE-2 and PBE-5: 1/2"
Connections:
All: NPTF
PBE-5: NPTF or Tube End Connections
Body Materials:
PBE-1A and PBE-5: Brass
PBE-2: Bronze or SST
Maximum Inlet Pressure :
PBE-1A: 600 psi (41.4 bar)
PBE-2: 400 psi (27.6 bar)
PBE-5: 650 psi (44.8 bar)
Control Range:
PBE-1A: 15 to 600 psi (1 to 41.4 bar)
PBE-2: 10 to 400 psi (0.7 to 27.6 bar)
PBE-5: 0 to 600 psi (0 to 41.4 bar)
Maximum Temperature: 150°F (65.5°C)
