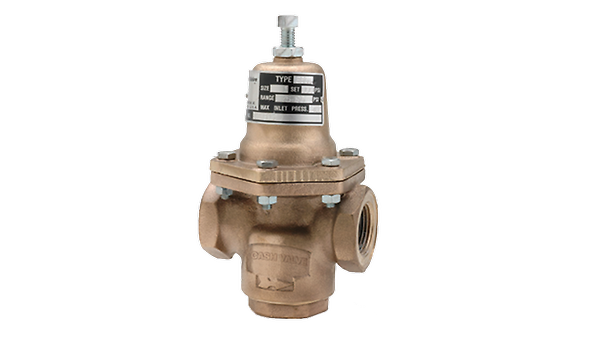

Cash Valve E-55 High Capacity Pressure Regulating Valve
Non-returnable
PHP0.00
The Type E-55 pressure reducing and
regulating valve is specifically designed for
use in the final-line circuit and maintains a
relatively constant pressure differential across
the valve even during high flow rates.
Choose Quantity
Product Details
GENERAL INSTALLATION INSTRUCTIONS
Type E-55 regulators should be installed in the horizontal position with the spring chamber upright. For other installation requirements, consult the factory. For easy operation and maintenance, it is suggested that manual
shut-off valves be installed upstream and downstream from the valve and a pressure gauge between the regulator and the downstream valve. Before installing the valve, the piping and valve should be thoroughly flushed out to remove any foreign material.
Install the valve with the inlet pipe fitted to the inlet connection identified on the valve body. Use a compatible sealant on the male pipe threads and do not over tighten the valve connections.
Specifications
Service: Final line gas service only above 0°F (-17.7°C)
Sizes: 1 ¼”, 1 ½” and 2”
Connections: Threaded internal inlet and outlet (available with NPT or BSP threads)
Body: Bronze
Temperature Rating: +150°F to 0°F (65.5°C to -17.7°C)
Maximum Initial Pressure: 400 psi (27.6 bar)
Capacity: For specific capacity information, consult the factory
https://www.cashvalve.com/documents/manuals-type-e-55-cryogenic-pressure-reducing-valve-pressure-build-up-regulator-installation-instructions-cash-valve-en-en-7988956.pdf
