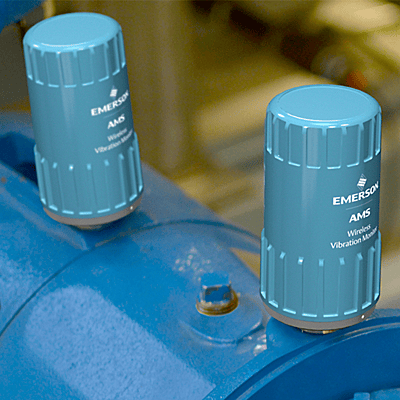

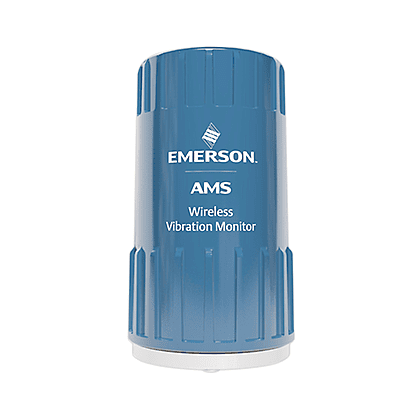

AMS Wireless Vibration Monitor
Non-returnable
PHP0.00
The AMS Wireless Vibration Monitor delivers full vibration data over a self-organizing wireless mesh network. It provides rich information about machinery health for both operations and maintenance personnel. Overall vibration, PeakVue measurements and temperature readings can be easily integrated into any control system or plant historian, while diagnostic data can be displayed by AMS Device Manager and AMS Machine Works software with alert broadcast via the AMS Optics asset performance platform.
Choose Quantity
Product Details
Features
- Embedded prescriptive analytics deliver fast, accurate diagnostic information.
- Default settings provide the shortest path to actionable information. Experts can customize settings to fine tune results.
- Easy installation for fast deployment and ROI.
- Standard long-life battery means less maintenance and fewer trips to the field.
- Robust industrial design for hassle free operation.
- Hazardous area ratings extend monitoring across the plant while keeping personnel safe.
- Fully compatible with existing WirelessHART networks and AMS 9420 Wireless Vibration Transmitter installations.
Specifications
- Sensor by Range and Frequency ResponseVibration Overall (Z): 80 g’s, 20,000 Hz; PeakVue Z – 80 g’s, sampling 51.2 kHz
- Vibration Overall (X): 16g’s, 1000 Hz; Vibration Overall (Y): - 16 g’s, 1000 Hz
- Temperature -40°C to +85°C
- Analysis Parameters2 velocity bands (defaults 2-65 Hz and 65-300 Hz) and 2 acceleration bands (defaults 10-500 Hz and 500-1000 Hz)
- Prescriptive AnalyticsBearing/Mechanical and Lubrication Severity; Calculated Machine Speed (RPM)
- Waveform and SpectrumMain axis (Z): User selectable FMax (200 Hz, 500 Hz, 1 kHz, 2 kHz, 5 kHz, 10kHz, 20kHz) User selectable FMin (2 Hz, 10 Hz); User selectable resolution (400, 800, 1600 LOR)
- Secondary Axes (X and Y): User selectable FMax (200 Hz, 500 Hz, and 1000 Hz)
- Diagnostic Thumbnail SpectraVelocity and PeakVue based on 1600 LOR
- Operating Temperature-40° to +85°C
- Operating Humidity95%, non-condensing
- Wireless ProtocolIEC 62591 WirelessHART®
- Broadcast Range100m Line of Sight
- Hazardous Location CertificationsCheck documentation below for certificates
https://www.emerson.com/documents/automation/brochure-ams-wireless-vibration-flyer-ams-en-6925810.pdf
