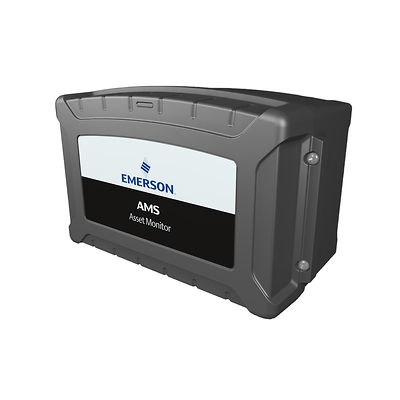

AMS Asset Monitor
Non-returnable
PHP0.00
AMS Asset Monitor manages pervasive sensing while providing prediction, protection and edge process monitoring capabilities, mounting at the asset to reduce cabling requirements and installation costs. It accommodates up to 12 CHARMs including Vibration CHARMs as well as DeltaV CHARMs for process inputs.

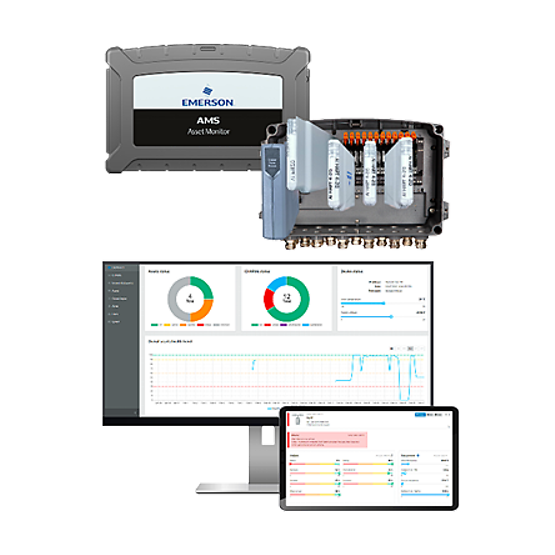

AMS Asset Monitor features powerful out-of-the-box software functionality via web browser for analysis, reporting, and alerting. This web-based thin client interface features an internal Logic Studio with pre-programmed application solutions for easy-to-understand analysis and alert reporting, and its Asset Studio interface delivers asset information to the user’s mobile device or desktop thin client.
Choose Quantity
Product Details
Features
- Wired or wireless Ethernet deployment for greater flexibility
- Intuitive browser-based user interface for easy setup and analysis
- Applications already onboard and with preset alert limits for faster setup
- Faster and easier implementation using analysis results presented in plain language
Specifications
- Channels: Up to 12 CHARMs
- Collection Modes: Simultaneous or Independent
- A/D Resolution / Dynamic Range: 24 bit / Greater than 100dB
- Amplitude Accuracy Deviation: <1%
- Repeat Accuracy: <2% of Full Scale
- Units: SI (Metric) or Imperial (English)
- Frequency Units: Hz, CPM, Orders
- Scaling: Linear
- Monitor Internet Protocol: OPC UA
- Monitor Daisy Chain (up to 8): (2) 100Mbps Ethernet Ports
- Monitor Backhaul to Plant Network: (1) 1Gbps Enternet Port
- Dimensions mm(in): 238(9.4)H x 384(15.1)W x 196(7.7)D
- Weight (with CHARMS): 7.3kg (16.3 lbs)
- Operating Temperature: -40 to 55 °C (-13 to 131 °F)
