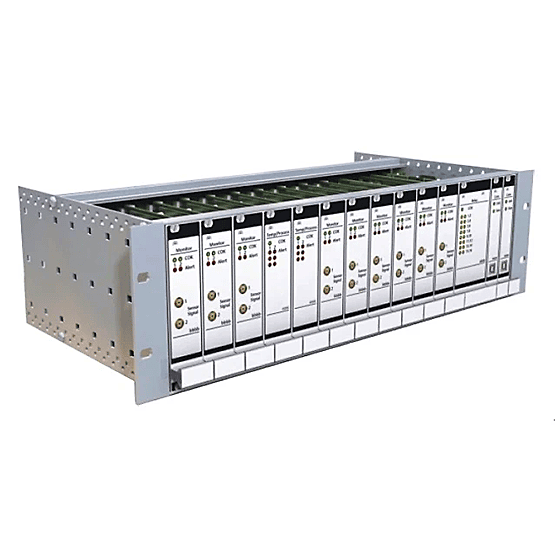

AMS 6500 ATG Machinery
The AMS 6500 ATG protection system is a modern protection-plus-prediction system designed to easily replace obsolete protection systems, allowing users to cost-effectively initiate online prediction monitoring of critical rotating machinery assets like steam turbine generators, gas turbines, boiler feed pumps, offshore compressors, pipeline turbo compressors, chemical industry compressors, turbo exhausters, blowers, boosters and more.
AMS 6500 ATG includes flexible cards that can be configured to acquire prediction data, an embedded OPC server, and a mobile app for viewing data from anywhere on the plant network.
Although no additional software is required when using AMS 6500 ATG, reliability, operations, and maintenance personnel can move beyond simple fault recognition and take analysis a step further by pairing with AMS Machine Works as a complimentary solution.
- Embedded predictive diagnostics including PeakVue™ technology, order analysis, band analysis and energy in bands
- Communicate and use with AMS Machine Works asset performance management software platform to harness Advanced Analysis Tools.
- Interface with other applications through OPC UA, Modbus TCP/IP, or Modbus RTU

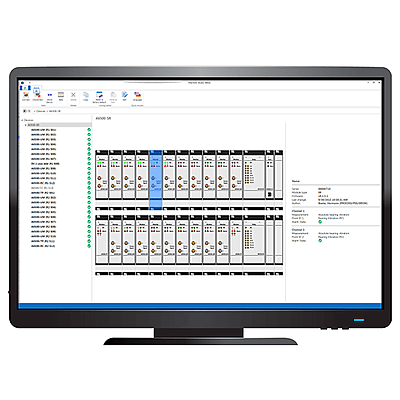

- Machine Studio Configuration Software features a familiar, more intuitive user interface.

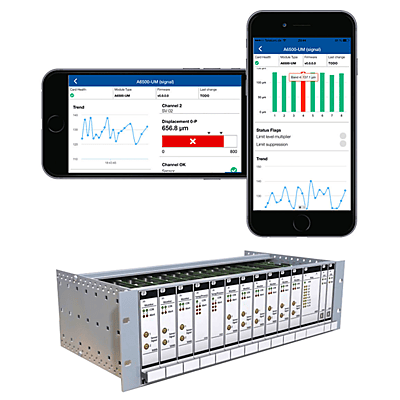

- The ATG View Mobile Application delivers asset health information to the user anywhere on the plant network.
- 42-Month warranty
- Airborne contaminants resistance class G3 according to ISA-S71.04
- SNTP time synchronisation
- Analog ChannelsUp to 44 (2 full ATG racks)
- Tachometer ChannelsSame
- Sampling Rate48 kHz
- ADC Resolution/Fmax24 bit / 18.75 kHz
- Lines of Resolution (via Modbus)400
- Waveform samples (via Modbus)1024
- Input TypeSee A6500-UM specifications
- Channel Scan2 up to 44 Channel simultaneous
- High Frequency DetectionPeakVue, PeakVue Waveform (OPC-UA, Modbus TCP)
- Communication with AMS Machine WorksEthernet (Data Transfer Service to database)
