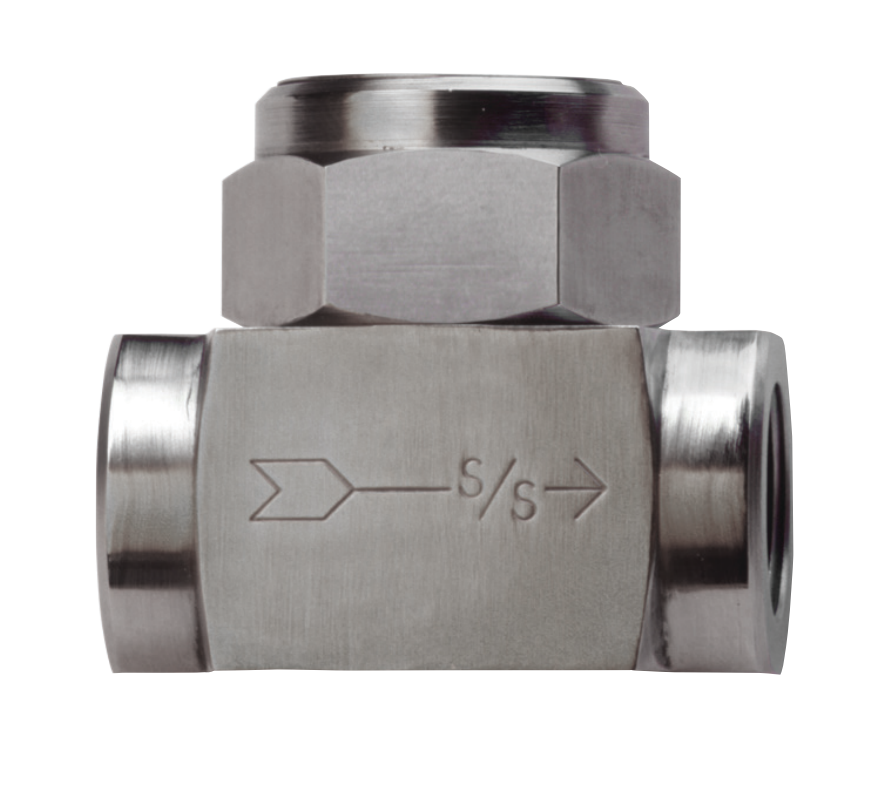

Yarway Thermodynamic Disc Steam Traps Series 29

GENERAL APPLICATION

Drip and tracer steam traps provide protection from condensate damage, temperature fluctuation, solidification, separation, and freezing, for steam lines, turbines, valves, risers, expansion loops, steam jacketing as well as pumps, while maintaining consistent performance in less than ideal conditions.

FEATURES

Thermodynamic traps

• Easy to check cyclic operation

• Fail open design • Self-draining (vertical mount)

• Energy efficient subcooled discharge

• Hardened stainless steel valve body and seat

• Single moving part

• Freeze proof

• Withstand superheat

• Unaffected by water hammer

TECHNICAL DATA

Technology: Thermodynamic

Size: NPS ⅜, ½, ¾, 1 (DN 10, 15, 20, 25)

Temperature: Max. design 750°F (400°C)

Pressure rating: 4 to 600 psig (0.27 to 41 barg)

Capacity: Up to 10,580 lb/h (4800 kg/h) hot condensate

Connections: Threaded

Materials: Stainless steel
