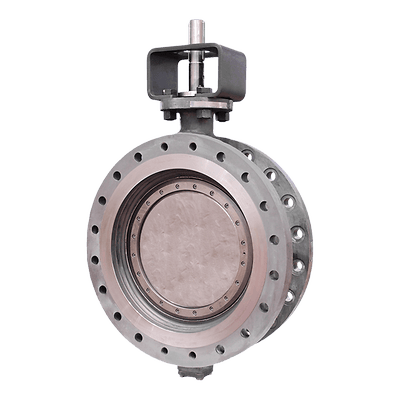

Vanessa Series 30,000 Standard Triple Offset Valve

APPLICABLE PRODUCT RANGE

• Series 30,000 basic configuration, double flanged body style, which can be installed by connecting each valve flange to each pipe flange with the applicable bolting.

• Series 30,000 basic configuration, lug body style with threaded holes, which shall be bolted to both pipe flanges.

• Series 30,000 basic configuration, wafer body style, which can be installed between two pipe flanges with the applicable studs or bolts.

• Series 30,000 basic configuration, buttweld ends, which must be welded to the line.

Manuals: Vanessa Series 30,000 Triple Offset Valve
