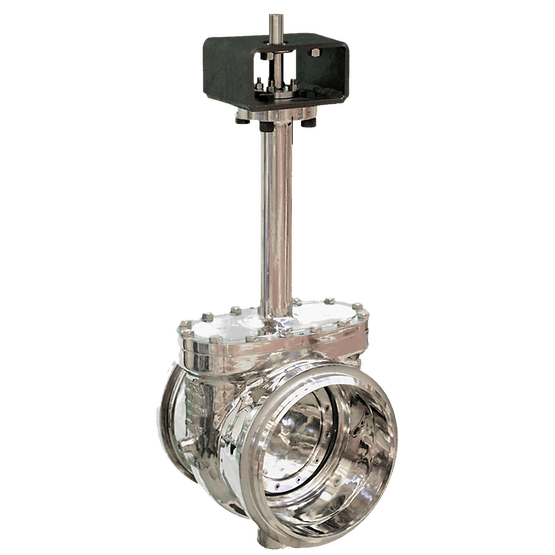

Vanessa Series 30,000 Cryogenic Triple Offset Valve

Features

• Non-rubbing 90-degree rotation and metal-to-metal torque seating provide bi-directional zero leakage tightness to ISO 5208, EN 12266-1 and API 598.

• Bolted extended bonnet protects packing from cryogenic service temperatures.

• Forged one-piece Nitronic® 50 metal seal ring ensures high corrosion resistance and keeps important mechanical features at low temperatures.

• Buttweld top entry design allows access without removing the valve body from the line.

• Stellite® grade 21 overlay seats are maintenance-free.

• Robust and fire-resistant all-metal construction.

• Spot-faced flanges ensure maximum joint-to-pipe integrity.

• Robust one-piece shaft designed to transfer/maintain torque efficiently.

• Two-piece packing gland and graphite packing minimize external emission risk.

• Key secured shaft-to-disc connection for maximum shaft integrity.

• Heavy duty bearings withstand high pressure loads and wear.

• Braided graphite bearing protectors prevent dirt intrusion, ensuring constant running torque and valve operability.

Specifications

Body Design: Short Pattern, Top Entry, Welded Body

Material: Stainless Steel

Operating Temperature: Cryogenic

Pressure Class: ASME, PN

Process Connection Type: 150RF, 300RF, 600RF, 900RF

Seat/Seal Type: Metal-to-Metal, Cryogenic

Shutoff Class: API 598, Zero Leakage, Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2)

Standards: API 609, ASME B16.34

Style: Emergency Shutoff Valves, Switching Valve

Valve Size: NPS 10 / DN 250, NPS 12 / DN 300, NPS 14 / DN 350, NPS 16 / DN 400, NPS 18 / DN 450, NPS 20 / DN 500, NPS 24 / DN 600, NPS 3 / DN 80

Valve Size Standard: DN, NPS

Valve Type: Triple Offset Valve, Cryogenic Valve

Product Brochure: Series 30,000 - Cryogenic Configuration, Vanessa,
