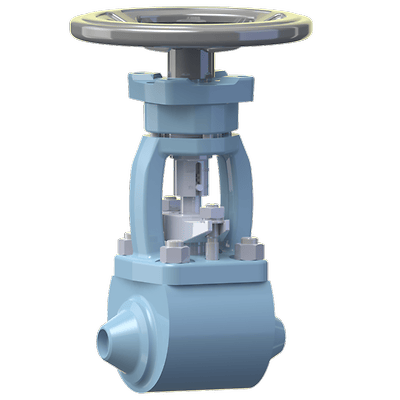

Sempell Model VA510 High Pressure Globe Valve

Features

• T-pattern globe type

• Body made of forged steel

• Wear resistant stellite body seat

• Conical seat with line contact sealing

• Visual position indicator

• Non-rising hand wheel

• Prepared for later automation in service

• Low pressure loss due to optimized flow path

• Small driving forces

• Easy maintenance

• Code compliance with DIN, EN and PED

Specifications

• Certification: PED, CE, ASME B31.1

• End Connection: Socket Weld, Butt Weld

• Application: HRSG, High Temp, General Service, Clean Steam, Boilers, Boiler, Biomass Boiler and Power Boiler, Pumps, Valves & Manifolds, Steam turbine, Steam Headers

• Body Design: Long Pattern

• Material: Alloy, Steel, Stainless Steel, Metal, Carbon Steel

• Operating Temperature: High Temperature

• Pressure Class: ASME, PN

• Process Connection Type: BWE, SWE

• Seat/Seal Type: Metal-to-Metal

• Shutoff Class: Class V (FCI 70-2)

• Standards: ASME B16.34

• Style: Direct-Operated, Globe Valves

• Valve Size: NPS 1/2 / DN 15, NPS 1-1/2 / DN 40, NPS 1-1/4 / DN 32, NPS 2 / DN 50, NPS 2-1/2 / DN 65, NPS 3/4 / DN 20, NPS 3/8 / DN 10

• Valve Size Standard: NPS, DN

• Valve Type: Globe, Engineered Product

Technical Data

• Size range: DN 10 to 65 (NPS ⅜ to 3)

• Pressure / Rating: Up to PN 630 / Class 3600

• Temperature range: Up to +720°C (+1300°F)

• Connection: Butt weld ends acc. to DIN /ASME B16.25 or ISO 9692-1

• Socket weld ends to DIN / ASME B16.11

• Design: Acc. to PED, EN/DIN or ASME

Applications

Vents, drains, bypass systems, warm-up

lines, in conventional power plants.

Data Sheets: Sempell Model VA400 (ASME) High Pressure Stop Valves, Sempell-EN
