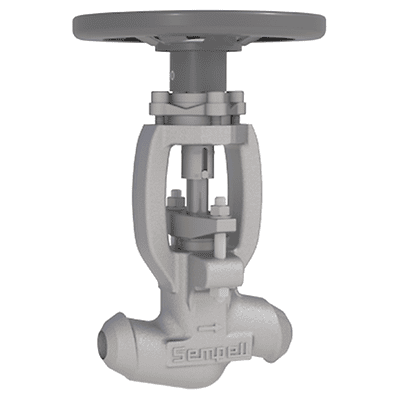

Sempell Model VA400 High Pressure Globe Valve

Features

• T-pattern globe type

• One-piece die-forged body design

• Wear resistant stellite body seat

• Robust and optimized design with limited number of components

• Visual position indicator

• Non-rotating stem

• Handwheel or automated option

• Double bearings for low actuation forces

• Code compliance with ASME B16.34 and PED

Specifications

• Size: NVS ½ -2 /DN10-50

• Pressure: Class 900-2680 / PN63-400

• Temperature: -29°C to 625°C (-20°F to 1150°F)

• Material: Alloy, Carbon steel, Metal, Stainless Steel

• Connection: BWE, SWE, Norm WE, or acc. to customer requirements

GENERAL APPLICATIONS

Designed for high temperature and pressure applications in steam and water cycles for all power applications.

The VA400 is based on the extensive experience of Sempell isolation valves and

leverages a simplified design to provide an optimized and economical solution, with

a replaceable seat. Applications include vents, drains, bypass systems, warm-up lines, etc. - wherever reliable leak-tight performance is required.

Data Sheets: Sempell Model VA400 (ASME) High Pressure Stop Valves, Sempell-EN
