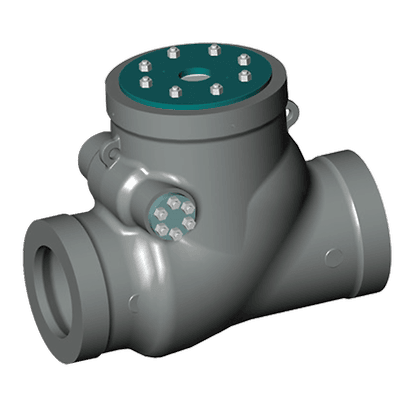

Sempell Fasani Style A High Pressure Check Valve

Features

• A range of pressure seal Check Valves designed according to ASME B16.34.

• Available in Swing Check, Tilting disc and Piston Check (Y and T pattern design)

• All range is offered in all the material stated in the ASTM specifications, and designed to always guarantee the maximum safety and flow efficiency.

• End to end dimensions as per ASME B16.10

• Swing and tilting disk check valves can be installed on both horizontal and vertical (up-flow) piping.

• Stop check valves (Y and T patterns) are designed to be installed on horizontal piping.

• Tilting disc check valves are designed utilizing triple offset seat geometry to prevent the disc slamming, stable disk operation and to ensure, at the same time, a quick closing service.

• Tilting disc seat is manufactured directly in the body therefore removal of seat/body welding avoids distortion of seat face.




Specifications

• Certifications: PED, ASME B31.1, India Boiler Registration

• End Connection: Butt Weld

• Application: Boilers, Boiler, Balance of Plant, High Temp, HRSG, Pumps, Valves & Manifolds

• Body Design: Long Pattern

• Material: Alloy, Carbon Steel, Metal, Stainless Steel, Steel

• Operating Temperature: High Temperature, Greater Than 400 F (204 C)

• Pressure Class: ASME

• Process Connection Type: B+WE

• Seat/Seal Type: Metal-to-Metal, Swing

• Shutoff Class: Class V (FCI 70-2)

• Standards: ASME B16.34

• Valve Size: NPS 6 / DN 150, NPS 4 / DN 100, NPS 3 / DN 80, NPS 2 / DN 50, 6 inch (DN150) and Larger, 5 inch

• Valve Size Standard: NPS

• Valve Type: Engineered Product

• Media: Steam, Water, Hot Water

Data Sheets: Pressure Seal Cast Check Valves - Style A, Sempell-EN
