Q Range Robust

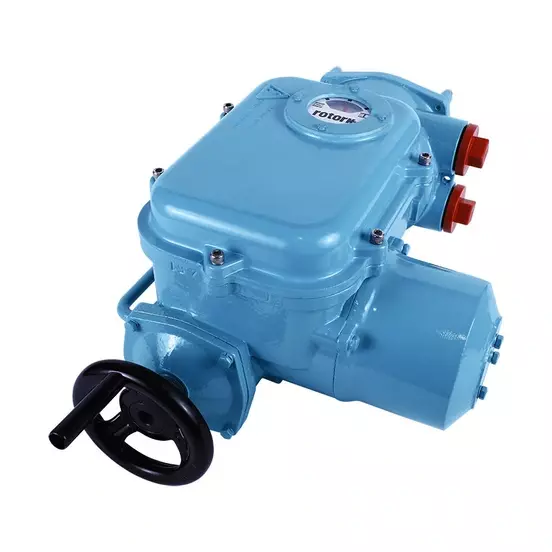

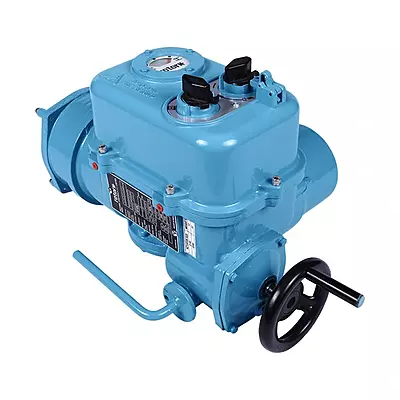

Q range robust, reliable and compact part-turn actuator with the flexibility to suit your application. Q Standard actuators are designed for use with external controls and motor switchgear. Q Pak actuators add a control interface module housing local control selectors, logic PCB, motor switchgear and transformer.
Features
• Continuous position indication at all times, even without power
• Water ingress protection – double-sealed to IP68 1.2 m for 48 hours
• Torque available from 40 to 900 Nm (30 to 664 lbf.in)
• 1-phase and 3-phase options (model dependent)
• Self-locking drive train in electrical and manual modes to prevent valve back driving
• Increased protection by using independent torque and position sensing
• Oil bath lubrication provides extended life and the ability to mount in any orientation
Brochures:
PUB007-001 - Q Range Sales Brochure (India Only) - English (pdf)
PUB007-007 - Q Range Sales Brochure - English (pdf)
Manuals:
PUB007-008 - Q Range safe use installation and maintenance manual - English (pdf)
