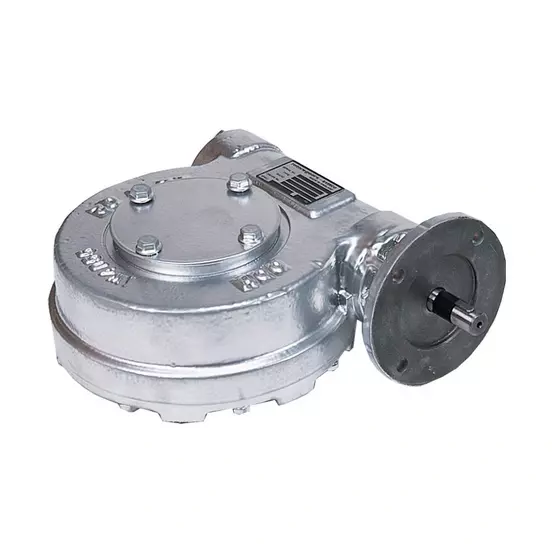

MTW Mk2 Multi-turn Worm Gear Operator
MTW Mk2 multi-turn worm gear operators have been designed to suit isolating duty valves, dampers and gates that require irreversibility. The gearboxes include low lead angle gearing designed to be inherently self-locking. MTW Mk2 gearboxes feature a removable output sleeve to facilitate bore and keyway machining, and an indexable baseplate to allow on-centre or off-centre mounting to the valve flange without special machining.
Features
• Totally enclosed bronze gearing
• Grease filled for life and fully sealed to IP67 as standard
• Comprehensive gear ratios combined with a selection of auxiliary input spur gear reducers
• Angular contact bearings supporting worm shaft
• Removable and repositionable output sleeve
• Repositionable baseplate
• Inherently self-locking gear componentry
Brochures:
PUB087-015 - MTW Mk2 multi-turn worm gearboxes datasheet - English (pdf)
