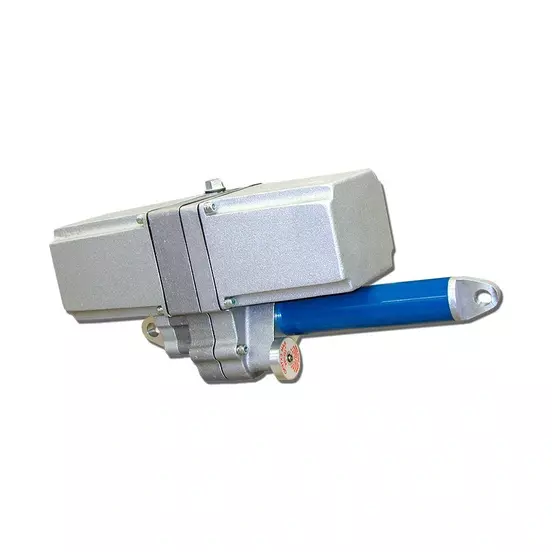

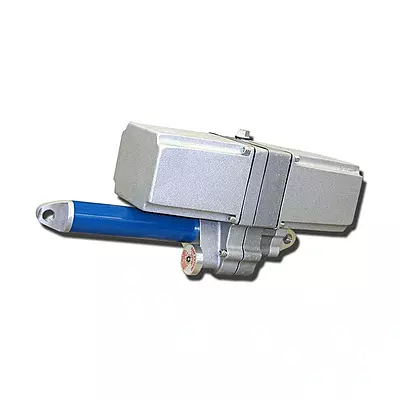

LA-2400 Linear Actuator
LA-2400 linear actuators for reliable positioning of dampers, combustion controls, gates, diverters, hydraulic variable speed drives, or other linear positioning applications. AC or DC powered, self-contained, bi-directional and internally geared to produce up to 6,672 N (1,500 lbf) thrust. Some models offer continuous modulating duty up to 2,000 starts/hr.
Features
• Self-locking drive system to hold-in-last position and prevent backdriving up to thrust rating
• 1-phase and 3-phase or Direct Current (DC) power options
• Manual override standard
• HART® communications option
• Automatic thrust limiting
• Anti-condensation heater and thermostat
• Mechanical thrust overload protection protects unit from costly motor burnout
• High modulating duty improves process control
• Highly accurate control for better control of flow or process
• Minimal maintenance reduces plant downtime
• Lightweight and anti-corrosive cast aluminium housing
• Grease lubricated for mounting in any orientation
• Rain shield and bellows cover prevents damage due to water intrusion
