Keystone Figure 990/920 Butterfly Valves
Non-returnable
PHP100.00
Tags:

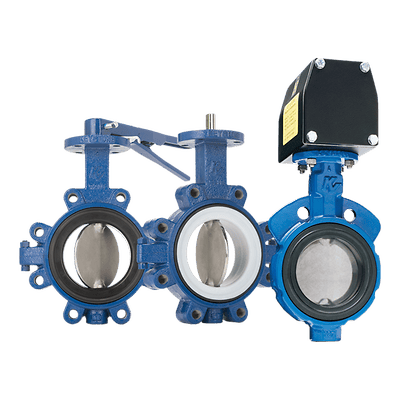

Keystone Figure 990/920 split body, thin disc resilient seated butterfly valves are designed for high flow and modulating service. These valves excel in heavy duty applications where corrosion and abrasion resistance is required. These valves are available in both wafer (Figure 990) and lugged (Figure 920) style.
Choose Quantity
Product Details
Features
- One-piece, thin profile, disc stem provides minimum obstruction to flow, resulting in highest Cv, lowest pressure drops and best control characteristics.
- Rounded polished disc edge gives full concentric sealing, lower torques, longer seat life and tight shut-off.
- Triple function, resilient seat isolates body and stem from line media, provides drop-tight shut-off of line media at full-rated pressure and provides positive flange sealing, eliminating the need for flange gaskets.
- Heavy duty, corrosion resistant top bushing provides upper stem support, absorbs actuator sideloading and extends valve cycle life.
- Bi-directional, self-adjusting double V-cup stem seals prevent external contaminants from entering the valve.
- Bi-directional, self-adjusting double V-cup stem seals prevent external contaminants from entering the valve.
