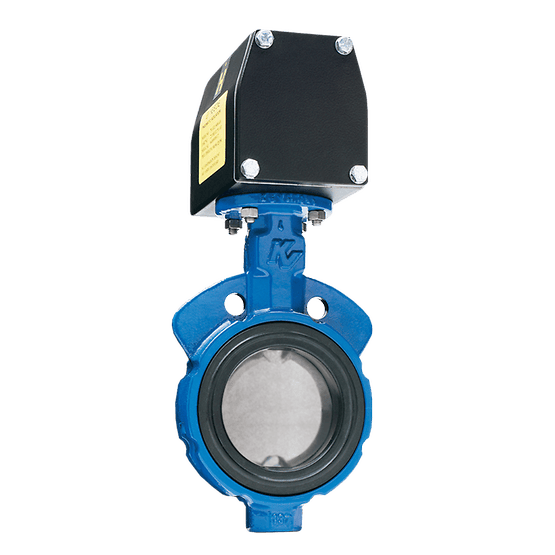

Keystone Figure 990/920 Butterfly Valve with Powered Actuator
Non-returnable
PHP100.00
Tags:
The Keystone Figure 990/920 is a split body, thin disc resilient seated butterfly valve complete with powered actuator, configurable by power source, size, function and more.
Choose Quantity
Product Details
Features
- One-piece, thin profile, disc stem provides minimum obstruction to flow, resulting in highest Cv, lowest pressure drops and best control characteristics.
- Rounded polished disc edge gives full concentric sealing, lower torques, longer seat life and tight shut-off.
- Triple function, resilient seat isolates body and stem from line media, provides drop-tight shut-off of line media at full-rated pressure and provides positive flange sealing, eliminating the need for flange gaskets.
- Heavy duty, corrosion resistant top bushing provides upper stem support, absorbs actuator sideloading and extends valve cycle life.
- Bi-directional, self-adjusting double V-cup stem seals prevent external contaminants from entering the valve.
- Split body design enables easy field replacement of seat and disc/stem and permits direct mounting of Keystone actuators without the use of couplings or brackets.
