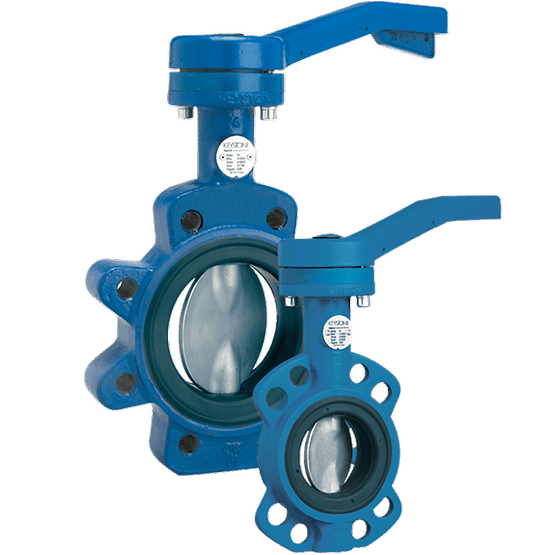

Keystone Figure 320/322 Resilient Seated Butterfly Valve
Non-returnable
PHP100.00
Tags:
The Figure 320 is an economical resilient seated Butterfly valve with dimensions according ISO standards
Choose Quantity
Product Details
Features
- Bubble-tight shut-off at full rating in both directions.
- One piece, specially profiled, wafer thin disc stem.
- Extended body neck allows free access to actuator where pipe insulation has been fitted.
- The seat and disc are the only two parts in contact with the medium.
- Face to face dimensions according ISO 3202 Part 3, K1 (ISO 5752 series 20) and DIN EN 558-1, series 20.
- The F320 wafer version has four flange locating holes for end of line service under certain conditions.
- Standard actuation: Handle (F414) on DN 50-200 valves. Gear operators (F455) on DN 250-300.</li></ul>
- The F322 lugged version is suitable for bi-directional end of line service.
- Suitable for pneumatic, electric and hydraulic actuation.
