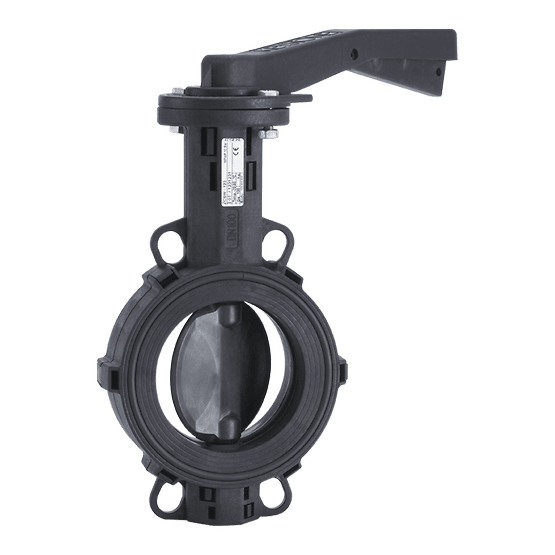

Keystone CompoSeal Resilient Seated Butterfly Valve with Manual Actuator
Non-returnable
PHP100.00
Tags:
The Keystone CompoSeal resilient seated butterfly valve is a lightweight, highly engineered composite material valve complete with manual actuator, configurable as a handle or gear operator.
Choose Quantity
Product Details
Features
- Innovative wafer style body and disc in high engineered composite results in excellent internal and external chemical resistance.
- Light weight construction results in lower cost and simplified installation.
- No extra pipe support needed when installed in plastic or GRP piping.
- Disc in high engineered composite material provides excellent corrosion resistance.
- All fasteners in stainless steel 316 as standard.
- Bubble tight shut-off in both directions, in accordance with EN 12266-1 leakrate A.
- Pressure range up to PN 16 at elevated temperature.
- Valve can be used in high line velocity applications up to 12 m/sec.
- Spindle and primary valve seals are not influenced by the flange bolting force or pipe flange type.
- High Kv (Cv) value.
- No need for flange gaskets.
- Primary stem sealing exceeds the pressure rating of the valve and prevents leakage through the shaft area to atmosphere.
