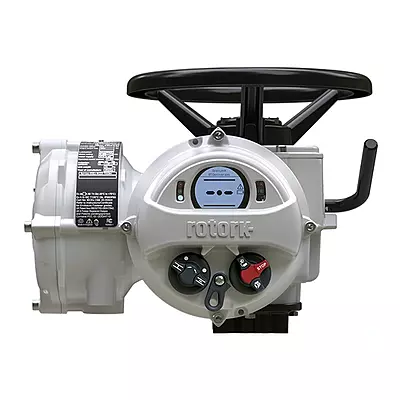

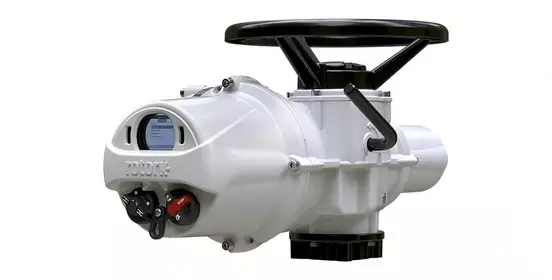

IQ3 Perform - Standard Multi-turn
The multi-turn 3-phase electric actuators are designed for isolation or regulation duties (Class A & B) of up to 60 starts per hour. They have a direct torque output range from 14 Nm (10 lbf.ft) to 3,000 Nm (2,200 lbf.ft). With the addition of second stage gearboxes, multi-turn output torque up to 40,178 Nm (30,030 lbf.ft) and quarter-turn up to 826,888 Nm (609,880 lbf.ft) are available.
Features
• Continuous position tracking at all times, even without power
• On power loss, the graphical interface, remote indication, and data logger are maintained and accessible
• Oil bath lubrication provides extended life and the ability to mount in any orientation
• Increased protection by using independent torque and position sensing
• Wide range of adjustable speeds available • Easy installation and maintenance using detachable thrust bases
• Water ingress protection, not reliant on terminal cover or cable gland sealing – double-sealed to IP66/68 7 m for 72 hours
• Safe, motor-independent, handwheel operation available at all times
• Control and commissioning via Bluetooth® Setting Tool Pro handset (BTST) or local control knobs
• Field-upgradeable and configurable control and indication options
• Rapid and secure commissioning and configuration even without power • Detailed trend analysis and diagnostic data are available for asset management
Brochure:
PUB002-400 - Rotork IQ3 Perform Sales Brochure - English (pdf)
