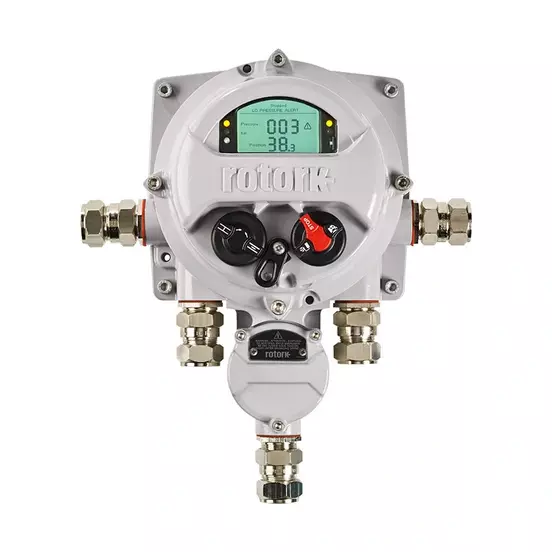

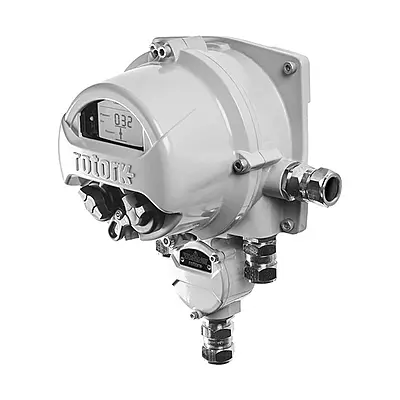

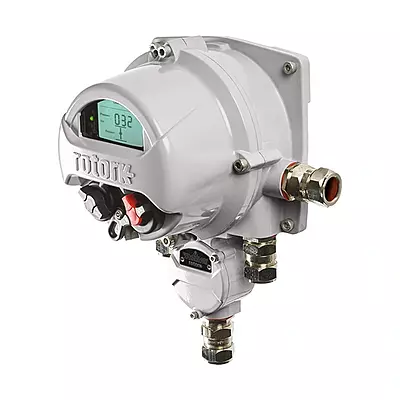

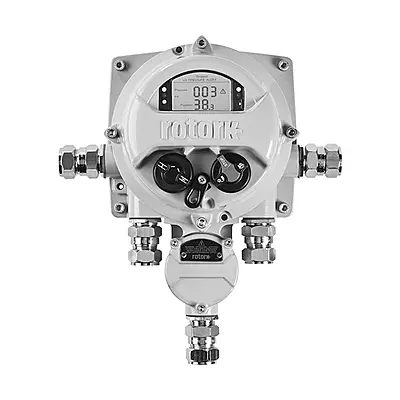

ELB Line Break Detection System
ELB is a robust self-contained electronic pipeline monitoring system. It continuously monitors pipeline pressure dynamics to provide early detection of pipeline breaks and initiate automatic valve actuator movement to an emergency position. The versatile system can also collect detailed operational data useful for optimising performance and enhancing pipeline safety.
Features
• Intuitive user interface featuring an advanced backlit display
• Comprehensive data logging in non-volatile memory with real-time clock
• Manual reset option to maintain fail-safe position until human intervention allows a return to normal operation
• Pressure monitoring with RoD and RoR calculation
• Configurable fail position to Open, Close, or Stay-in-place
• Configuration and data retrieval via Rotork Bluetooth® Setting Tool or PC (using Rotork Insight 2 software)
• Will operate on 9 to 28 VDC supply voltage
• Local controls Open, Close, Local / Remote / Stop
• Remote control available via either hard-wired connections or Modbus® serial communication protocol
• Partial stroke available
• Provision for up to six remote inputs
• Optional position sensor input
• Up to four configurable solenoid outputs
• Rotork designed hazardous area enclosure
• Can be mounted either on the actuator or remotely
• Compatible with a variety of actuator types
Specifications:
PUB127-002 - ELB Product Specification - English (pdf)
Brochures:
PUB127-001 - ELB Electronic Line Break flyer - English (pdf)
