CP Range

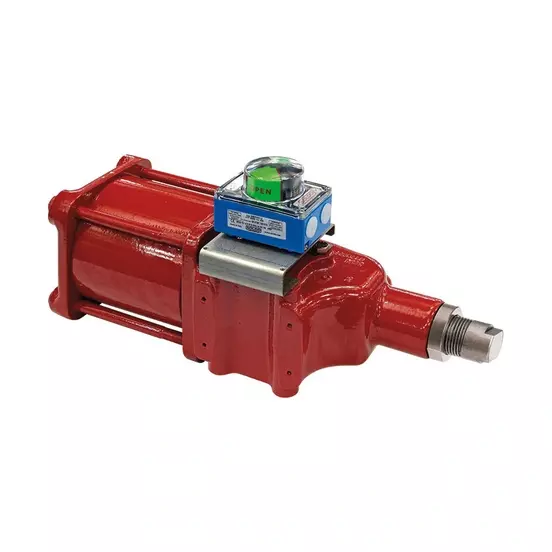

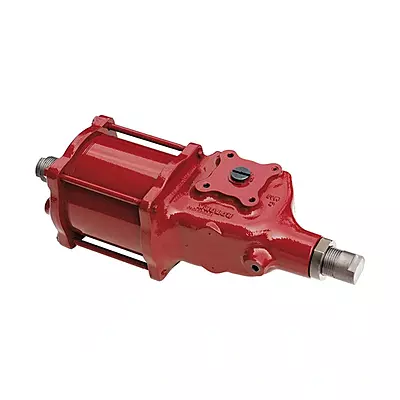

CP range are versatile, modular, scotch yoke actuators available in double-acting and spring-return configurations. The compact and efficient design yields surprisingly high torques even at low pressures. Using design concepts from Rotork’s GP and LP actuators, the CP range brings heavy-duty actuator qualities to small, quarter-turn applications
Features

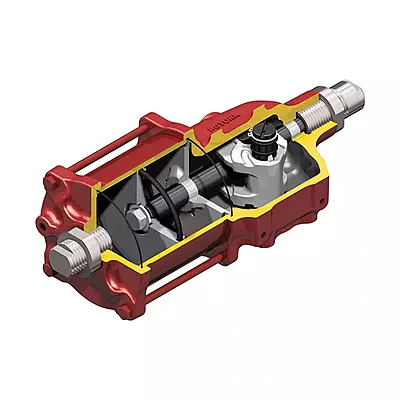

• Pneumatic scotch yoke actuators (symmetric yoke)

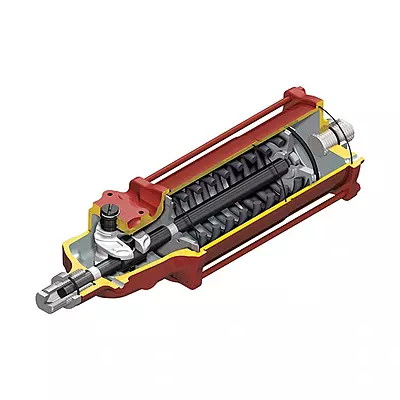

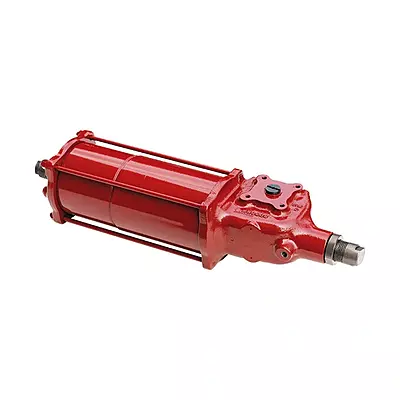

• Double-acting and spring-return configurations
• Fail close/fail open
• For on/off and modulating
• Ductile cast iron actuator body available in four sizes
• Corrosion resistant cylinders in electroless nickel-plated carbon steel
• Certified to IP 66M/67M
• Certified to ATEX 2014/34/EU
• Certified in accordance with PED 2014/68/EU
• Certified suitable for use at SIL3 as a single device in accordance with IEC 61508
• Optional emergency manual override suitable to operate the actuator in the event of fluid supply failure
