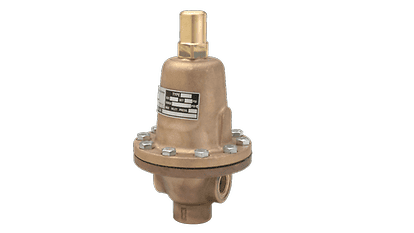

Cash Valve Series FR, Back Pressure Valves
PHP100.00
Tags:
Diaphragm actuated valves designed for either continuous or intermittent operation which provide accurate, repetitive pressure control.
Choose Quantity
Product Details
Model: FR, FR-6, FR-10
Features:
- Protects against periodic high pressures; maintains a desired inlet pressure by relieving to a lower variable pressure, or to atmosphere.
- Relieves dependably at adjusted pressures; shuts tight after relieving.
- Features unique “Floating Ring” seating arrangement that produces perfect seat contact.
- The FR valves afford unusually close regulation, repeatability of opening pressure and close reseating pressures.
- The FR-10 is for more economical, lower pressure applications - maximum pressure setting 250 psi. (Provided with iron body and spring housing only).
- Type FR is available in iron, bronze, steel or stainless steel body; threaded connections; monel, stainless steel or BUNA-N diaphragm.
- Pressure settings from 0 to 400 psi.
- The FR-6 is available for 200 to 600 psi.
Applications:
Centrifugal, regenerative turbine, reciprocating or
rotary pump bypass valve. Protects pump systems
from over pressure.
