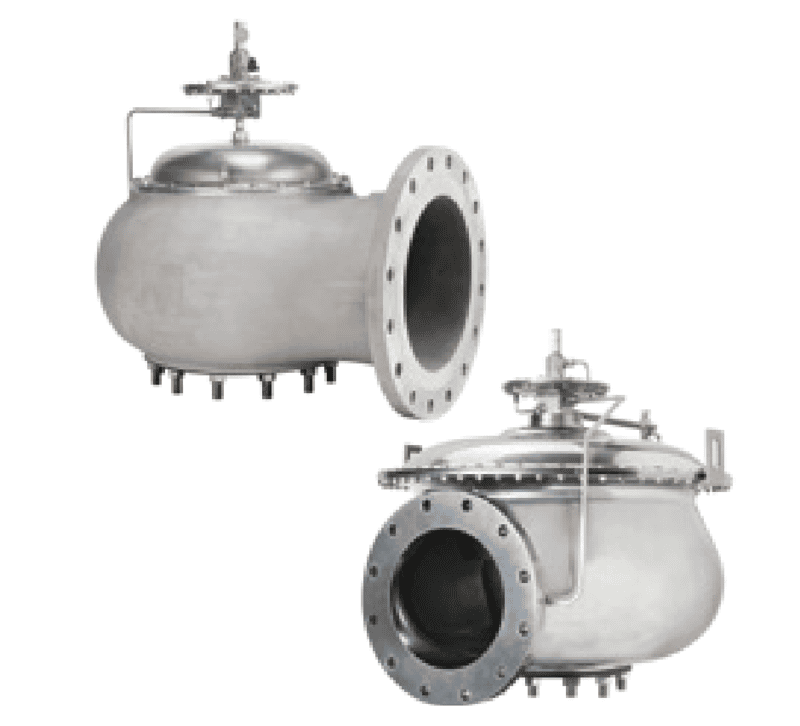

Anderson Greenwood Types 9300 & 9300H
Non-returnable
PHP100.00
Tags:
Full bodied valves to pipe away the discharge, types 9300 & 9300H are fully balanced against back-pressure. The modular concept allows them to be used in the pilot operated pressure relief mode and simultaneously provides vacuum relief, either via weight load or with a specific vacuum pilot. They can also be used for pressure only (blocked on vacuum) or vacuum only (blocked on pressure).
Choose Quantity
Product Details
The 9300H version has been optimized for very large flows, providing economical
reduction in size of valves and piping, or in the number of valves required for
large storage tanks, onshore and offshore.
Each size has been flow tested and certified. Field Test Connection, and complete scope
of accessories and configurations.
Technical Data
Sizes:
- DN 50 x 80 to 350 x 450
- 2" x 3" to 14" x 18"
Set Pressures:
- 10 mbarg to 3.5 barg [4”wc to 50 psig], pilot operated
Set Vacuum:
- -4.3 mbarg [-1 oz] full open, weight loaded
- -5 to –345 mbarg [-2” wc to –5 psig], pilot operated
Temperature Range:
- -196 to +93°C [-320 to 200°F]
Connections:
- ANSI flanges with studded inlet
Applications
- Refrigerated and cryogenic storage tanks including LNG, vapour recovery systems, LPG, ethylene, ammonia, LNG and LPG carriers, F-LNG, FSRU.
Low pressure processes where discharge is piped away or connected to a flare or recirculation system.
