Anderson Greenwood Types 93
Non-returnable
PHP100.00
Tags:

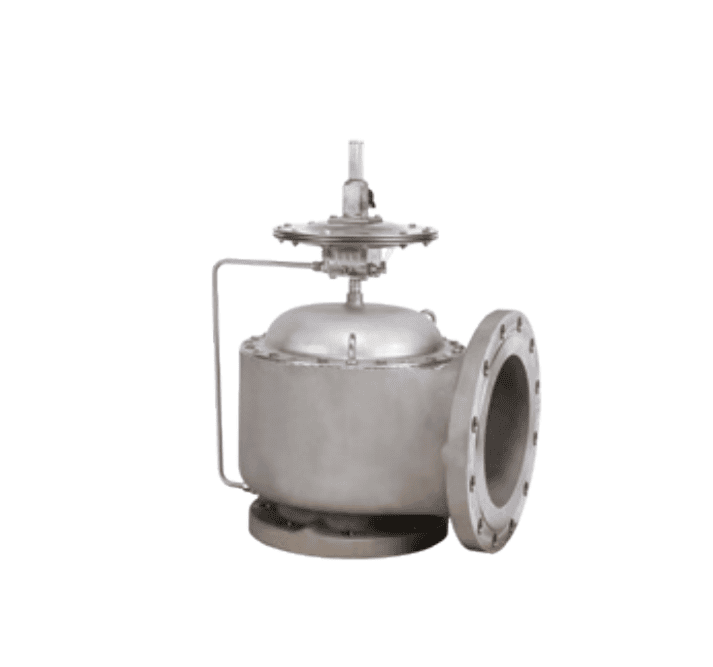

The type 93 pilot operated pressure relief valve is designed with elastomer seats and seals for accurate and reliable low pressure protection in petrochemical and chemical processes and storage tanks.
If required, the fully modulating pilot can easily be adjusted to pop action.
Elastomer seats and seals.
Elastomer or PTFE diaphragms.
Pressure protection only.
Field Test Connection, and complete scope of accessories and configurations.
Choose Quantity
Product Details
Technical Data
Sizes:
- DN 50 x 80 to 300 x 400
- 2" x 3" to 12" x 16"
Set Pressures:
- 7.5 mbarg to 3.5 barg [3”wc to 5 psig]
Temperature Range:
- -162 to 149°C [-260 to 300°F]
Connections:
- ANSI flange inlet and outlet
Applications
Low pressure application where accuracy, fast opening and premium seat tightness is required.
Low pressure gas piping.
Chemical storage tanks.
