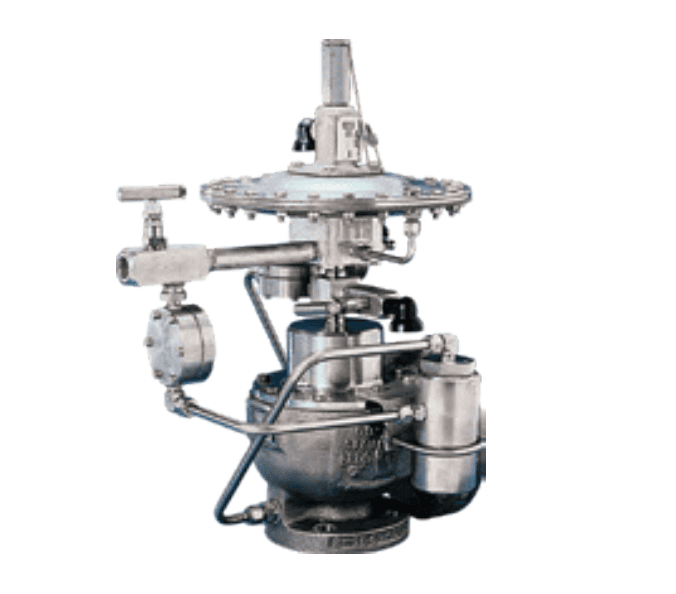

Anderson Greenwood Type 95 Pilot Operated Safety Valve
Non-returnable
PHP100.00
A unique pilot operated safety valve, originally developed for protecting the cargo tanks for LPG ships, it is very rugged
with a wide chemical compatibility rangefor all these hard-t o-solve aggressive lowto-medium pressure applications.
FFKM and PTFE seats and seals.
Full stainless steel construction as standard.
Bubble-tight to 95% of set.
Full modulating pilot (can be also set to pop if desired).
Wide temperature range.
Choose Quantity
Product Details
Technical Data
Sizes:
- DN 50 x 80 to 150 x 200
- 2”x 3” to 6” x 8”
Set Pressures :
- 0.35 to 10.3 Barg [5 to 150 psig]
Temperature Range:
- -107 to +205°C [-160 to 400°F]
Connections:
- ANSI flanges
Applications
- Marine LPG storage tanks.
- Low or medium pressure applications on aggressive chemicals like VCM.
- Low pressure steam.
