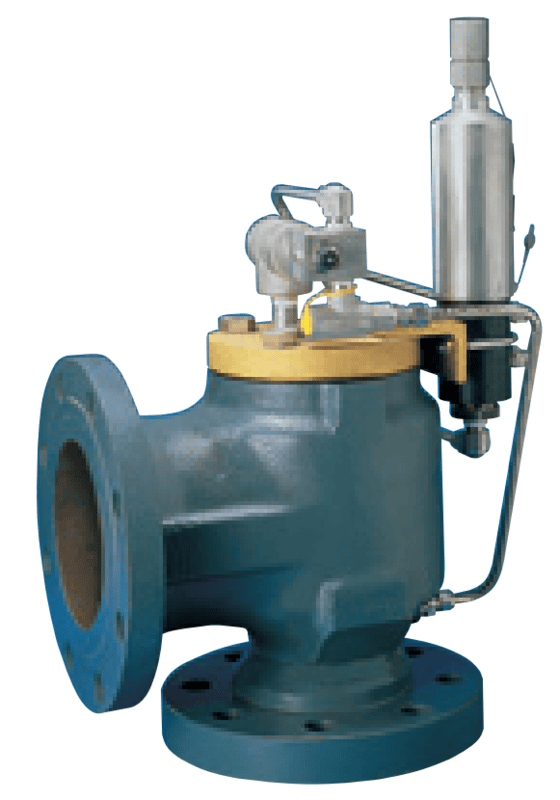

Anderson Greenwood Series 800 Pilot Operated Safety Valve
Non-returnable
PHP100.00
Tags:
The Series 800 is the higher pressure version of the Series 400. It is ideal on gas, liquid and mixed phase, including dirty applications, with a full modulating action up to 425 barg [6,170 psig].
The Series 800 is the most suitable safety valve for high pressure mixed phase applications.
Soft seat, elastomer or plastic.
API Std 526 fully compliant or with full bore orifices.
Field test connection and complete scope of accessories and configurations
Choose Quantity
Product Details
Technical Data
Sizes:
- DN 25 x 50 to 100 x 150
- 1" x 2" to 4" x 6"
Set Pressures:
- 102 to 425 barg [1,481 to 6,170 psig]
Temperature Range:
- -54 to +315°C [-65 to 600°F]
Connections:
- Threaded NPT 1" & 1½ ", DN 25 & 40
- Flanges ANSI and API
- Hub connections
Applications
- High pressure gas, vapor, liquid and mixed phase.
