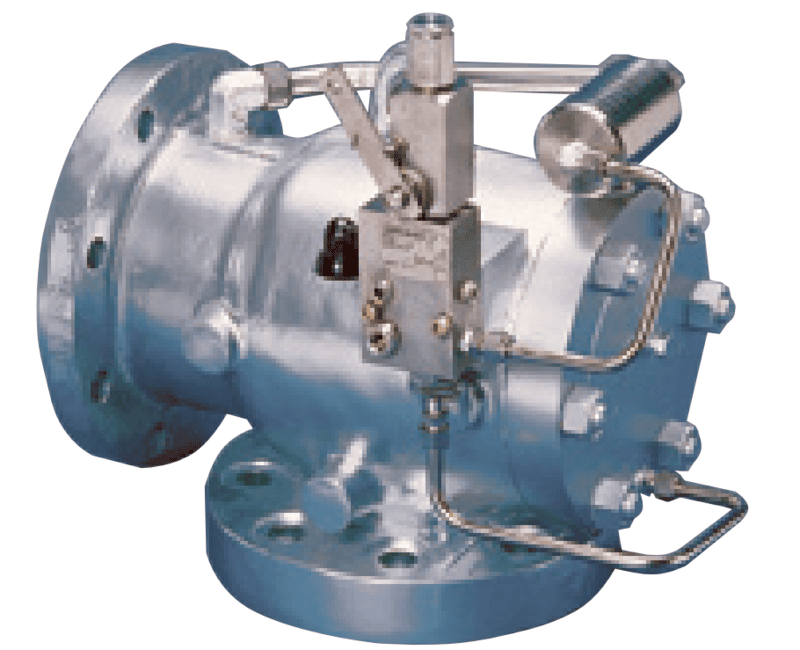

Anderson Greenwood Series 727 Pilot Operated Safety Valve
Non-returnable
PHP100.00
Tags:
With a full metal seat configuration both in the main valve and the pilot, the Series 727 is a unique pop action pilot operated safety valve to handle any hot gas or process steam application.
Full metal configuration.
Dampening functions to increase life cycle.
Adjustable blowdown 3 to 15%.
Manifolded dual pilot configuration available for ease of maintenance and operation.
Field test connection, and complete scope of accessories and configurations.
Choose Quantity
Product Details
Technical Data
Sizes:
- DN 50 x 80 to 200 x 250
- 2" x 3" to 8" x 10"
Set Pressures:
- 3.5 to 83 barg [50 to 1,200 psig]
Temperature Range:
- Up to 538°C [1,000°F]
Connections:
- ANSI flange inlet and outlet
Applications
- Process steam.
- Steam turbine extractions.
- High temperature gas.
- Reduced foot-print.
